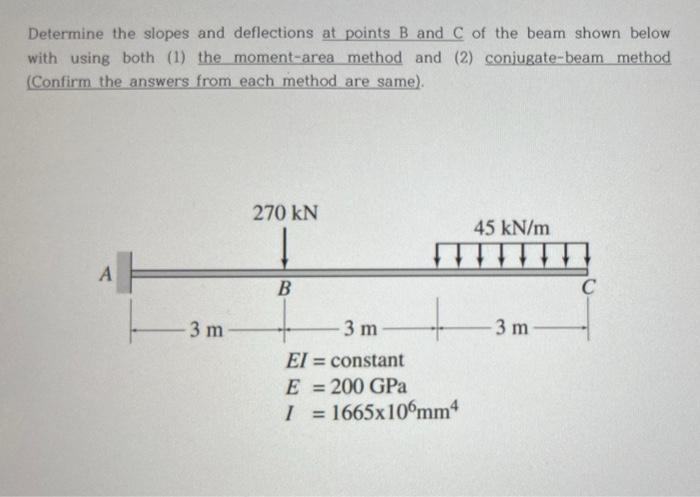

Determine the slopes and deflections at points B and C of the beam shown below with using both (1) the moment-area method and (2) conjugate-beam method (Confirm the answers from each method are same) 270 KN 45 kN/m A B C 3 m 3 m 3 m EI = constant E = 200 GPa I = 1665x106mm4
