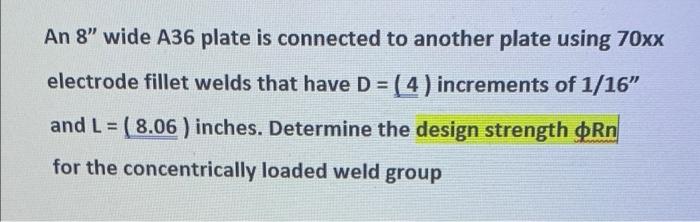

An 8" wide A36 plate is connected to another plate using 70xx electrode fillet welds that have D = ( 4 ) increments of 1/16" and L = ( 8.06 ) inches. Determine the design strength QRn for the concentrically loaded weld group

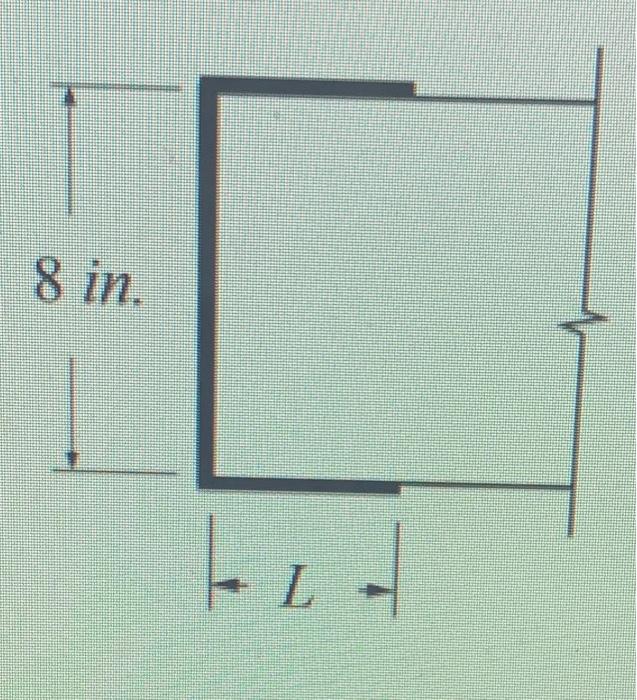

8 in. - L.
