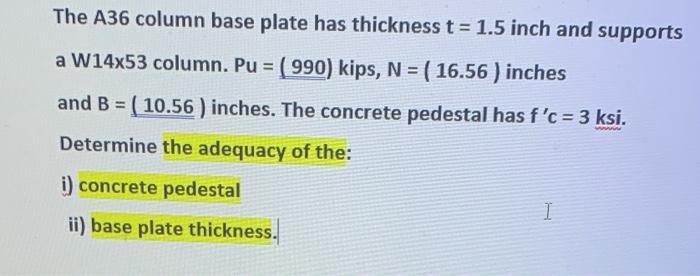

The A36 column base plate has thickness t = 1.5 inch and supports = - a W14x53 column. Pu = ( 990) kips, N = ( 16.56 ) inches and B = ( 10.56 ) inches. The concrete pedestal has f'c = 3 ksi. Determine the adequacy of the: i) concrete pedestal 1 ii) base plate thickness.

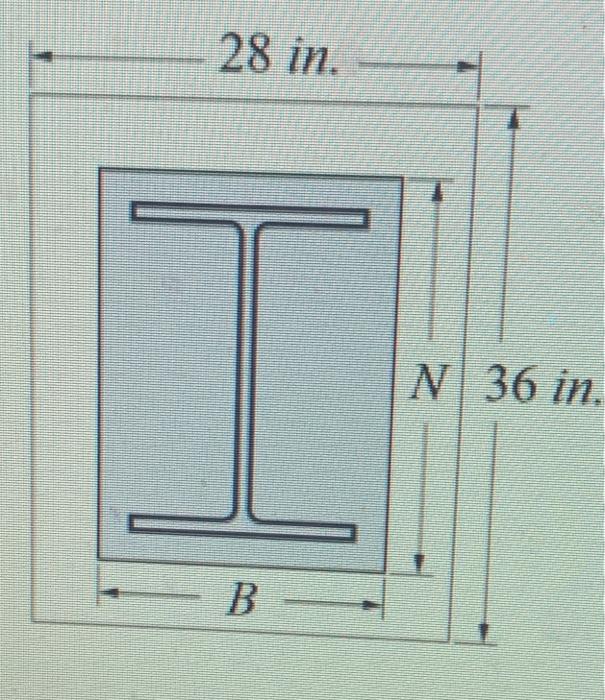

28 in. N 36 in. B
