4c) A 3m radial gate, which is 2m In width, is hinged about its horizontal axis, closes the rectangular sluice of a cont

Post by answerhappygod »

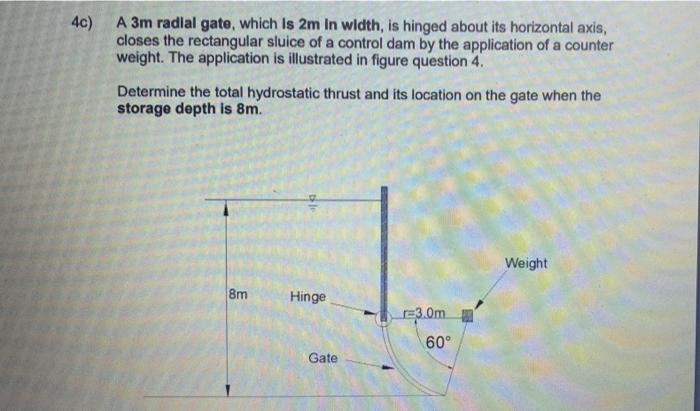

4c A 3m Radial Gate Which Is 2m In Width Is Hinged About Its Horizontal Axis Closes The Rectangular Sluice Of A Cont 1
4c A 3m Radial Gate Which Is 2m In Width Is Hinged About Its Horizontal Axis Closes The Rectangular Sluice Of A Cont 1 (39.62 KiB) Viewed 30 times
4c) A 3m radial gate, which is 2m In width, is hinged about its horizontal axis, closes the rectangular sluice of a control dam by the application of a counter weight. The application is illustrated in figure question 4 Determine the total hydrostatic thrust and its location on the gate when the storage depth is 8m. Weight 8m Hinge 53.0m 60° Gate
