Problem #3 (25 points) An 8" wide A36 plate is connected to another plate using 70xx electrode fillet welds that have D

Post by answerhappygod »

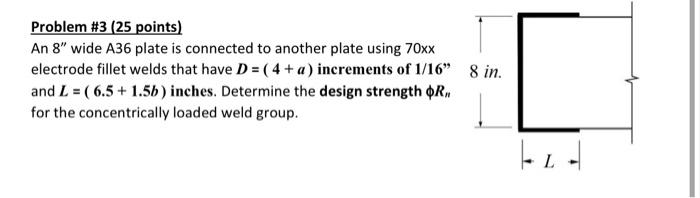

Problem 3 25 Points An 8 Wide A36 Plate Is Connected To Another Plate Using 70xx Electrode Fillet Welds That Have D 1
Problem 3 25 Points An 8 Wide A36 Plate Is Connected To Another Plate Using 70xx Electrode Fillet Welds That Have D 1 (18.17 KiB) Viewed 24 times
Problem #3 (25 points) An 8" wide A36 plate is connected to another plate using 70xx electrode fillet welds that have D = (4 +a) increments of 1/16" 8 in. and L = (6.5 + 1.5b) inches. Determine the design strength PR for the concentrically loaded weld group. HL
