Problem #2 (25 points) Column AB in the braced frame is a W14x311. The height of the first floor is (20 + a) ft. Based o

Post by answerhappygod »

Problem 2 25 Points Column Ab In The Braced Frame Is A W14x311 The Height Of The First Floor Is 20 A Ft Based O 1
Problem 2 25 Points Column Ab In The Braced Frame Is A W14x311 The Height Of The First Floor Is 20 A Ft Based O 1 (39.81 KiB) Viewed 63 times

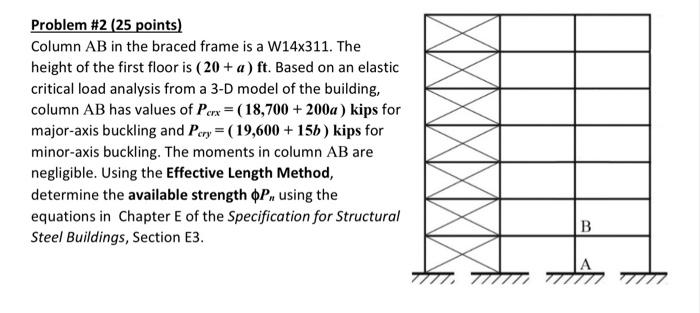

Problem #2 (25 points) Column AB in the braced frame is a W14x311. The height of the first floor is (20 + a) ft. Based on an elastic critical load analysis from a 3-D model of the building, column AB has values of Perx = (18,700 + 200a) kips for major-axis buckling and Pery = (19,600 + 156 ) kips for minor-axis buckling. The moments in column AB are negligible. Using the Effective Length Method, determine the available strength 0P, using the equations in Chapter E of the Specification for Structural Steel Buildings, Section E3. B
