Question 3: Draw (approximately) the N.F.D., S.F.D. and B.M.D. for column AGF of the portal. Assume all members of the t

Post by answerhappygod »

Question 3 Draw Approximately The N F D S F D And B M D For Column Agf Of The Portal Assume All Members Of The T 1
Question 3 Draw Approximately The N F D S F D And B M D For Column Agf Of The Portal Assume All Members Of The T 1 (79.02 KiB) Viewed 28 times

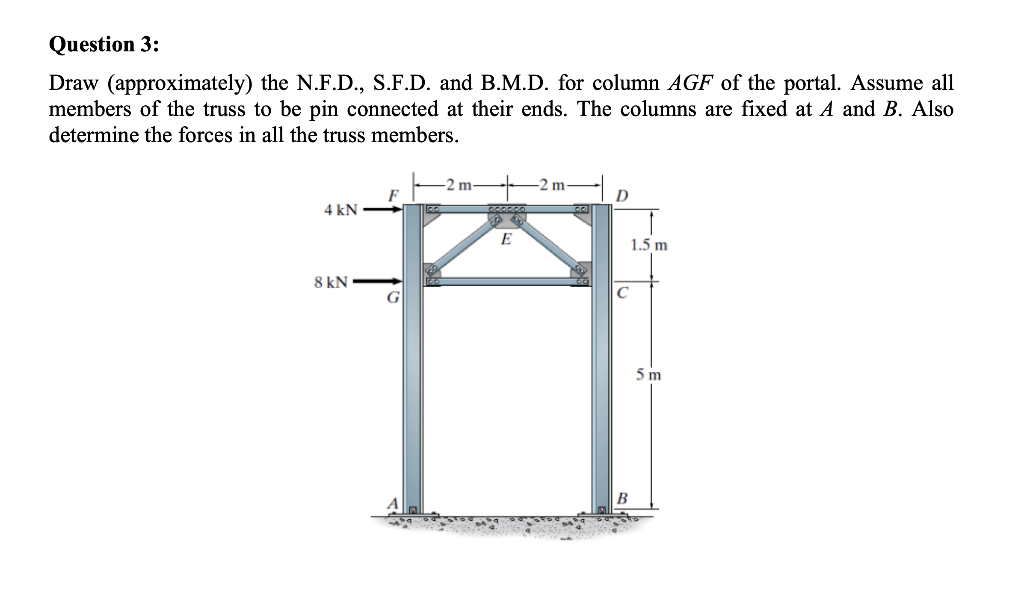

Question 3: Draw (approximately) the N.F.D., S.F.D. and B.M.D. for column AGF of the portal. Assume all members of the truss to be pin connected at their ends. The columns are fixed at A and B. Also determine the forces in all the truss members. 2 m 2 m D 4 kN नावानमार E 1.5 m 8 KN С 5 m B
