The simply supported beam consists of a W14 x 34 structural steel wide-flange shape [E = 29,000 ksi; I = 340 in.4). For

Post by answerhappygod »

The Simply Supported Beam Consists Of A W14 X 34 Structural Steel Wide Flange Shape E 29 000 Ksi I 340 In 4 For 1
The Simply Supported Beam Consists Of A W14 X 34 Structural Steel Wide Flange Shape E 29 000 Ksi I 340 In 4 For 1 (118.52 KiB) Viewed 181 times

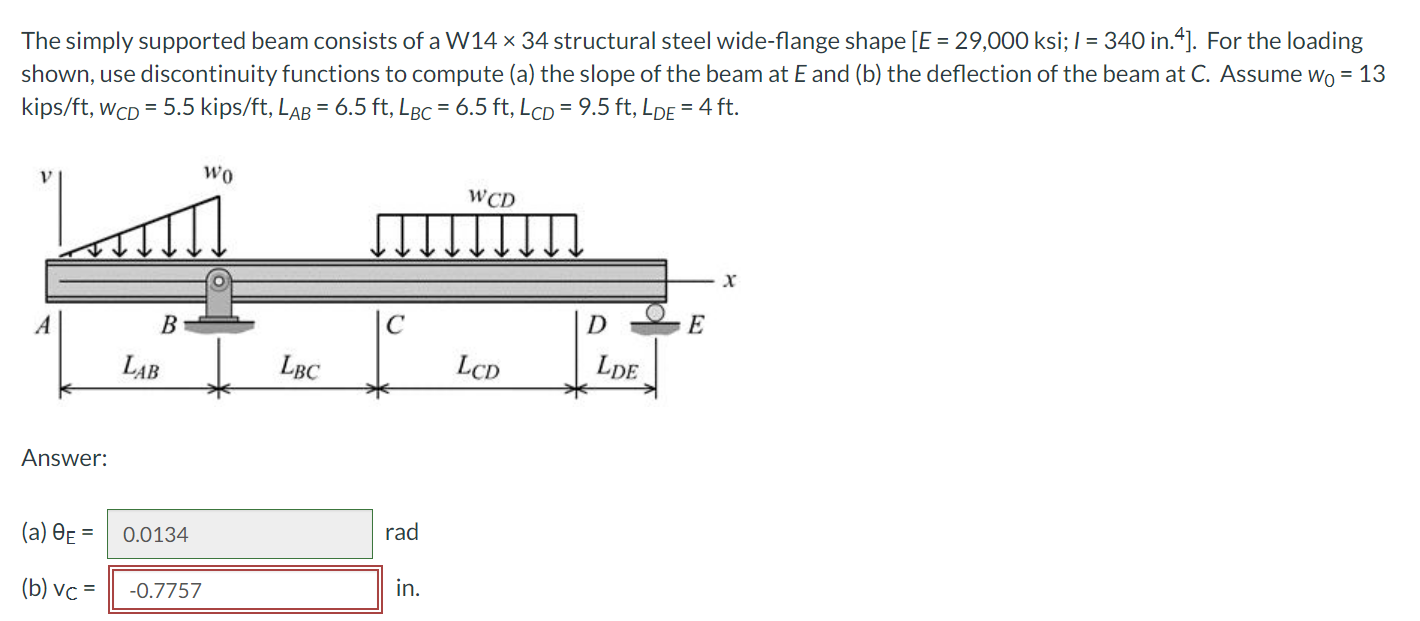

The simply supported beam consists of a W14 x 34 structural steel wide-flange shape [E = 29,000 ksi; I = 340 in.4). For the loading shown, use discontinuity functions to compute (a) the slope of the beam at E and (b) the deflection of the beam at C. Assume wo = 13 kips/ft, wcD = 5.5 kips/ft, LAB = 6.5 ft, LBC = 6.5 ft, LcD = 9.5 ft, LDE = 4 ft. WO WCD x A B с D E LAB I LBC LCD LDE Answer: (a) De = 0.0134 rad (b) vc= -0.7757 . in.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
