Mohr's circle is shown for a point in a physical object that is subjected to plane stress. Each grid square is 4 MPa in

[answerhappygod]

Mohr S Circle Is Shown For A Point In A Physical Object That Is Subjected To Plane Stress Each Grid Square Is 4 Mpa In 1 (94.66 KiB) Viewed 14 times

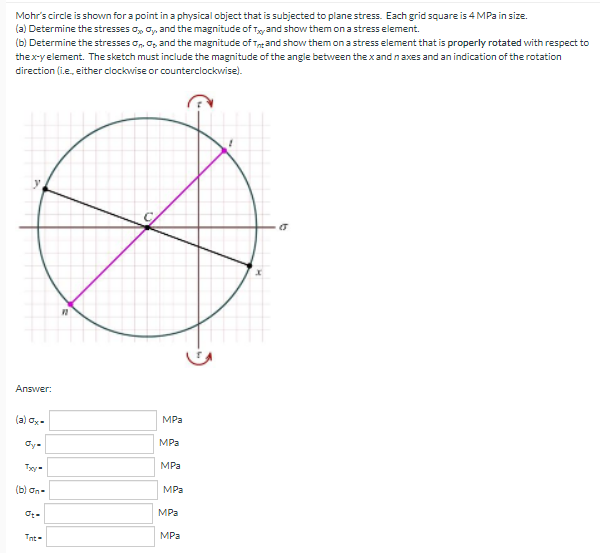

Mohr's circle is shown for a point in a physical object that is subjected to plane stress. Each grid square is 4 MPa in size. (a) Determine the stresses , Cy, and the magnitude of Tyyand show them on a stress element. (b) Determine the stresses On, and the magnitude of Tnt and show them on a stress element that is properly rotated with respect to thexy element. The sketch must include the magnitude of the angle between thex and n axes and an indication of the rotation direction (.e. either clockwise or counterclockwise). 0 Answer: (a)ox- MPa Oy MPa MPa (b) on MPa O- MPa Tnt - MPa
