2 in. The beam is constructed from plates having a thickness of 0.25 in. The moment of inertia about its horizontal cent

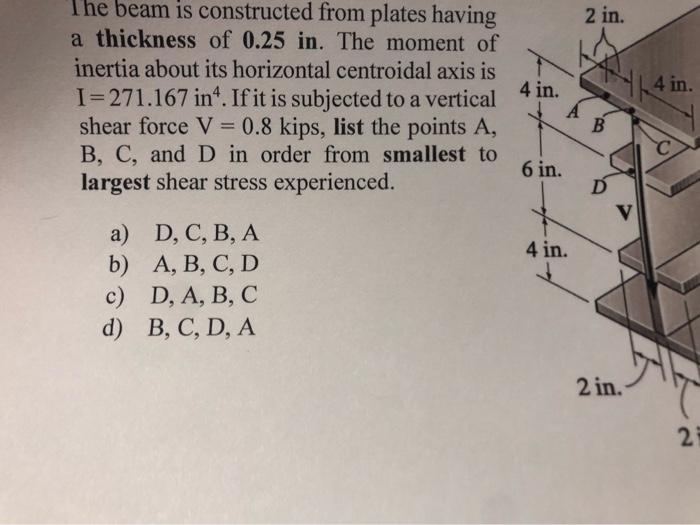

2 in. The beam is constructed from plates having a thickness of 0.25 in. The moment of inertia about its horizontal centroidal axis is I=271.167 in. If it is subjected to a vertical shear force V = 0.8 kips, list the points A, B, C, and D in order from smallest to largest shear stress experienced. 4 in. 464 4 in. B. С 6 in. D 4 in. a) D, C, B, A b) A, B, C, D c) D, A, B, C d) B, C, D, A 2 in. 23
