Design an exterior joint (only in normal beam direction) in a braced frame
diagrammatically shown in Fig. (I). The concrete and steel strengths are 3 ksi and
50 ksi, respectively. The story-to-story height is 12 ft 6 in. The normal beam
coincide with the column face from one side (i.e. there is an eccentricity between
the longitudinal axes of the beam and column).

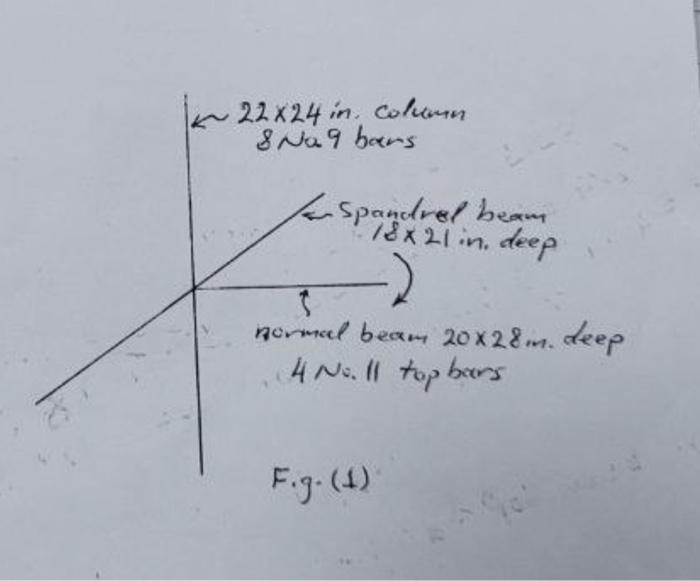

Design An Exterior Joint Only In Normal Beam Direction In A Braced Frame Diagrammatically Shown In Fig I The Concr 1 (25.04 KiB) Viewed 38 times
x 22x24 in column & Nagbars Spandrel beam 18x21 in. deep . normeel beam 20x28 m. deep 4 Noll top bars Fig. (4)
