Question 6 The reinforced concrete beam shown in Figure 6 is encastré at both ends. It supports two point loads as shown

[answerhappygod]

Question 6 The Reinforced Concrete Beam Shown In Figure 6 Is Encastre At Both Ends It Supports Two Point Loads As Shown 1 (444.21 KiB) Viewed 21 times

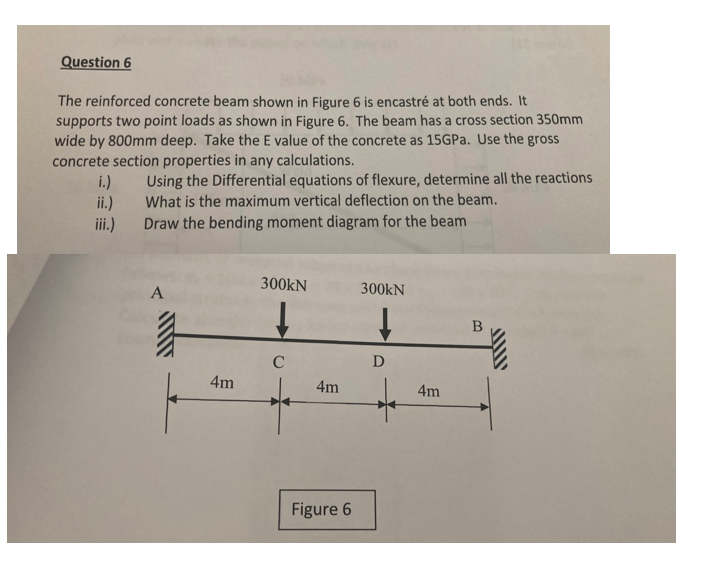

Question 6 The reinforced concrete beam shown in Figure 6 is encastré at both ends. It supports two point loads as shown in Figure 6. The beam has a cross section 350mm wide by 800mm deep. Take the E value of the concrete as 15GP. Use the gross concrete section properties in any calculations. i.) Using the Differential equations of flexure, determine all the reactions ii.) What is the maximum vertical deflection on the beam. iii.) Draw the bending moment diagram for the beam 300KN A 300kN 1 B С D 4m 4m 4m Figure 6
