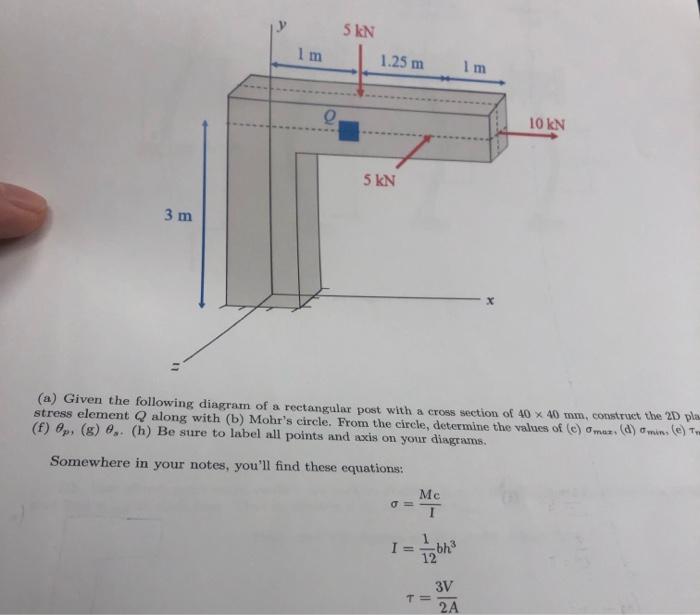

5 KN Im 1.25 m Im 10 KN 5 kN 3 m х (a) Given the following diagram of a rectangular post with a cross section of 40 x 40 mm, construct the 2D pla stress element Q along with (b) Mohr's circle. From the circle, determine the values of (c) max. (d) min, (e) (f) @p, (g), (h) Be sure to label all points and axis on your diagrams. Somewhere in your notes, you'll find these equations: Mc I I 3V TE 2A
