Q. 5 (A) For the following beam, identify DOFs at nodes A, B and C assuming that you want to solve it via the stiffness

Post by answerhappygod »

Q 5 A For The Following Beam Identify Dofs At Nodes A B And C Assuming That You Want To Solve It Via The Stiffness 1
Q 5 A For The Following Beam Identify Dofs At Nodes A B And C Assuming That You Want To Solve It Via The Stiffness 1 (49.38 KiB) Viewed 32 times

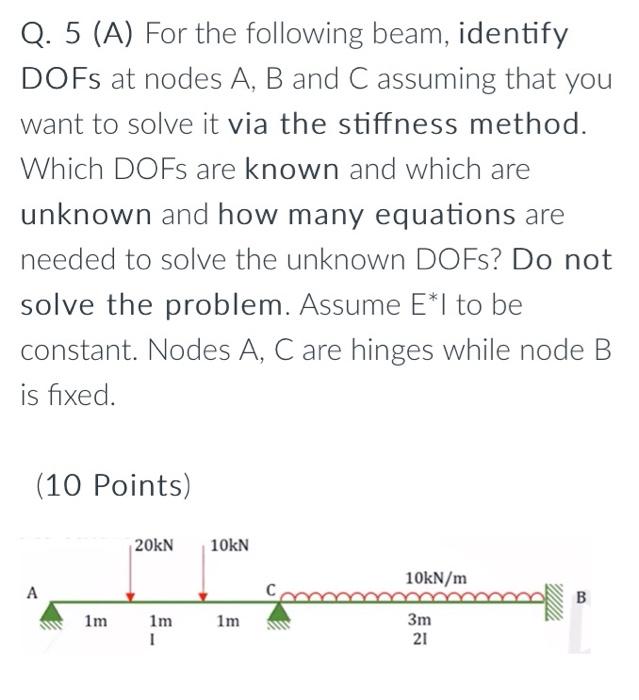

Q. 5 (A) For the following beam, identify DOFs at nodes A, B and C assuming that you want to solve it via the stiffness method. Which DOFs are known and which are unknown and how many equations are needed to solve the unknown DOFs? Do not solve the problem. Assume E*l to be constant. Nodes A, C are hinges while node B is fixed. (10 Points) 20KN 10kN 10kN/m А B 1m 1m 1m 1 3m 21
