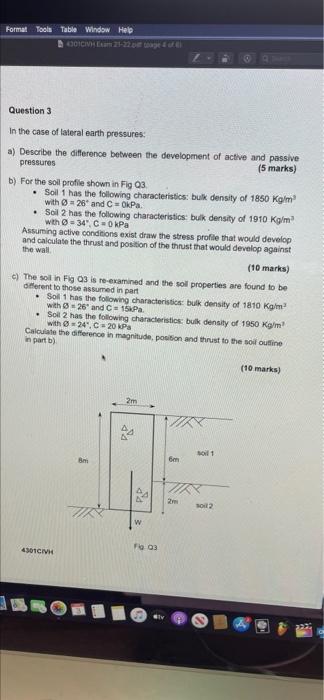

Formal Tools Table Window Help DICHE 21-22 Question 3 In the case of lateral earth pressures a) Describe the difference between the development of active and passive pressures (5 marks) b) For the soil profile shown in Fig 03 • Soil 1 has the following characteristics: bulk density of 1850 Kolm with = 26 and CokPa • Soil 2 has the following characteristics. bulk density of 1910 km wth = 34C OkPa Assuming active conditions exist draw the stress profile that would develop and calculate the thrust and position of the thrust that would develop against the wall (10 marks) The soil in Fg 03 is re-examined and the soil properties are found to be different to those assumed in part • Sol 1 has the following characteristics: bulk density of 1810 Km with 26" and C=15Pa. • Soll 2 has the following characteristics bulk density of 1950 Kg/m! with 24", C = 20 Pa Calculate the difference in magnitude position and thrust to the soil outine in part ) (10 marks) 2m Bolt Bm 6 PP 2 w 4301CIVH FO
