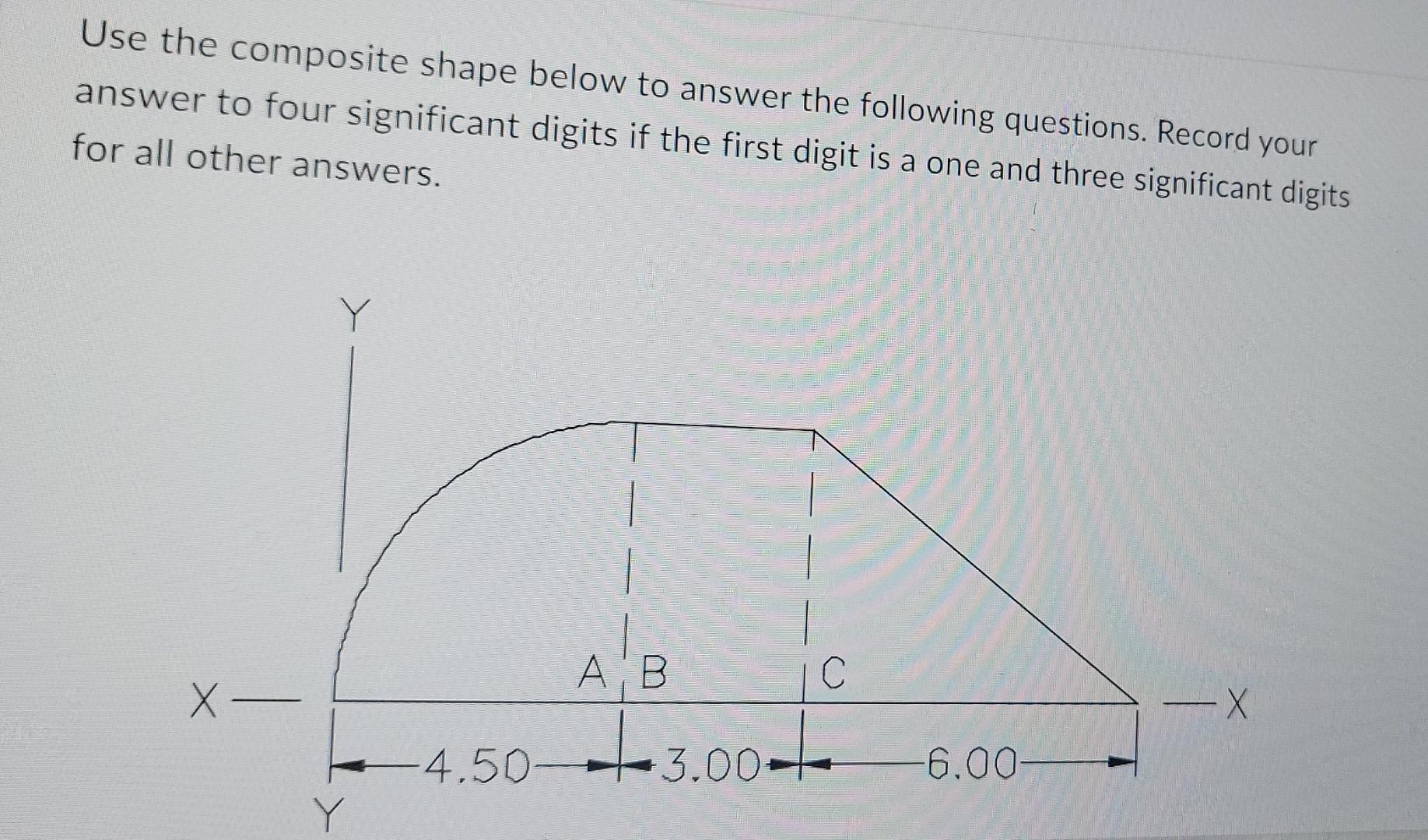

Use the composite shape below to answer the following questions. Record your answer to four significant digits if the first digit is a one and three significant digits for all other answers. X X - X A B 1С C -4.50-3.00-ta + 6.00 Y

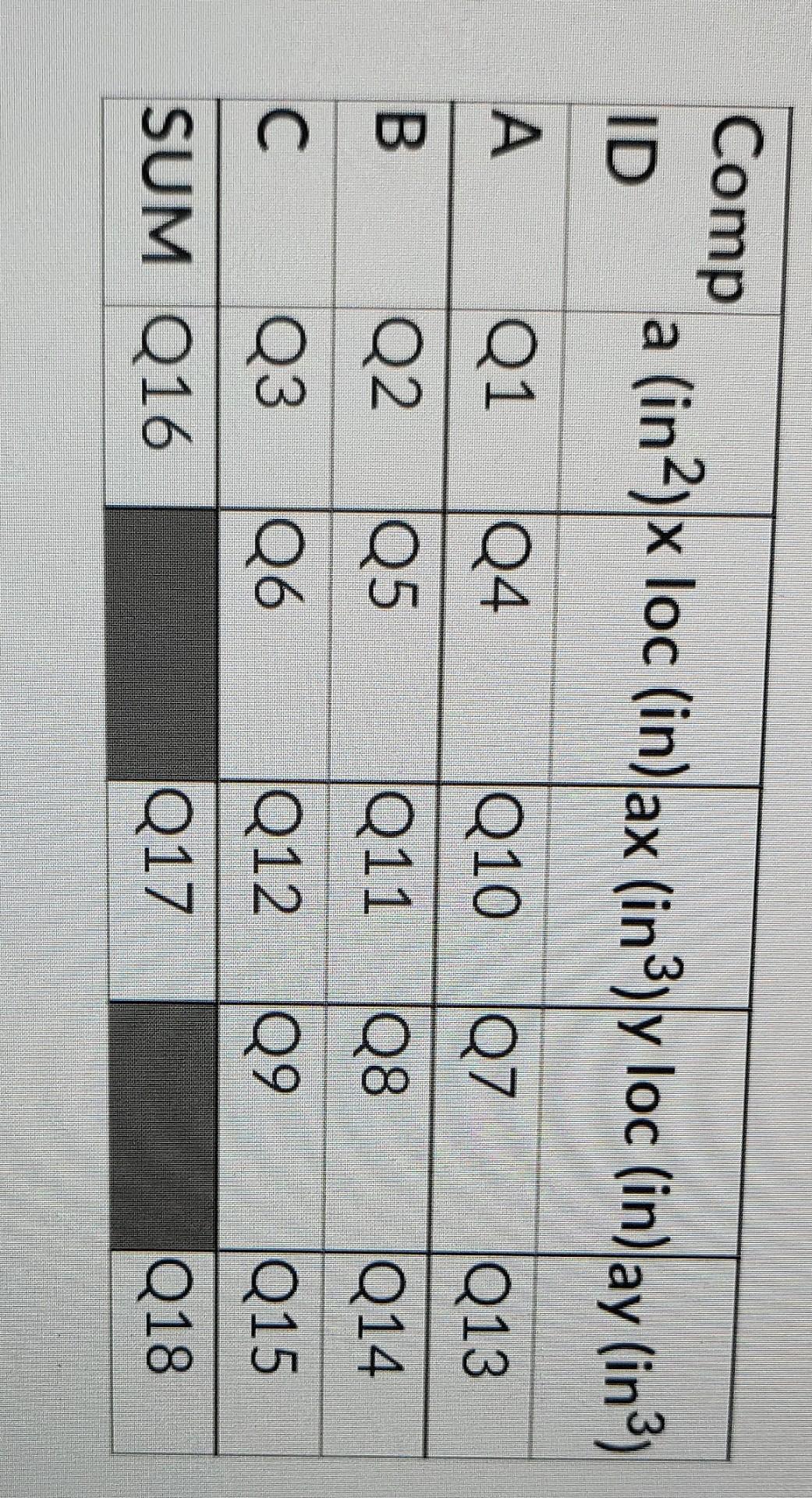

Comp a (in 2)x loc (in) ax (in3) y loc (in)ay (in3) ID A Q1 Q4 Q10 Q7 Q13 B 010 Q2 Q5 Q11 Q8 Q14 С. 03 Q6 Q12 09 Q15 SUM Q16 Q17 Q18

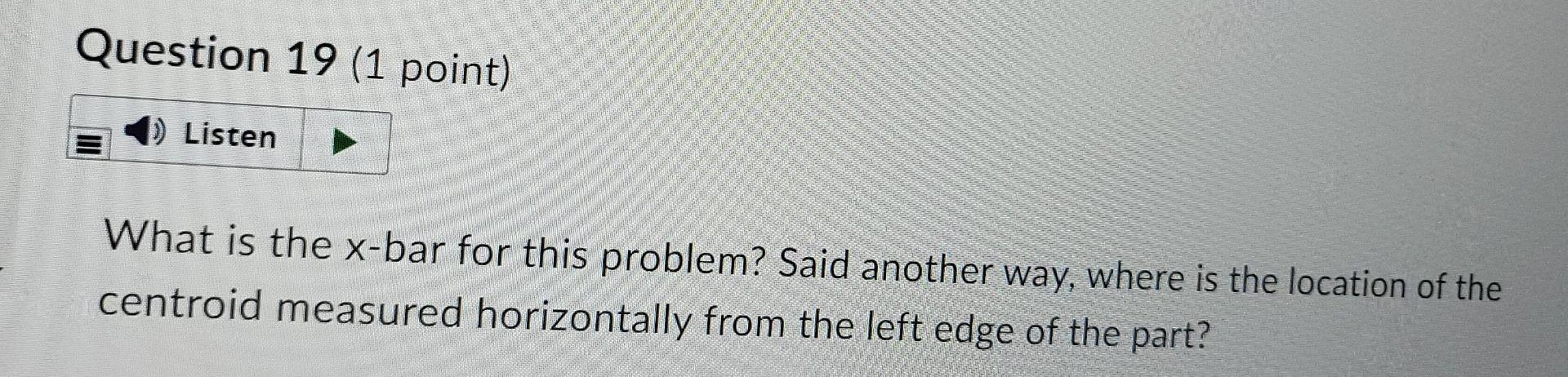

Question 19 (1 point) 1) Listen What is the x-bar for this problem? Said another way, where is the location of the centroid measured horizontally from the left edge of the part?
