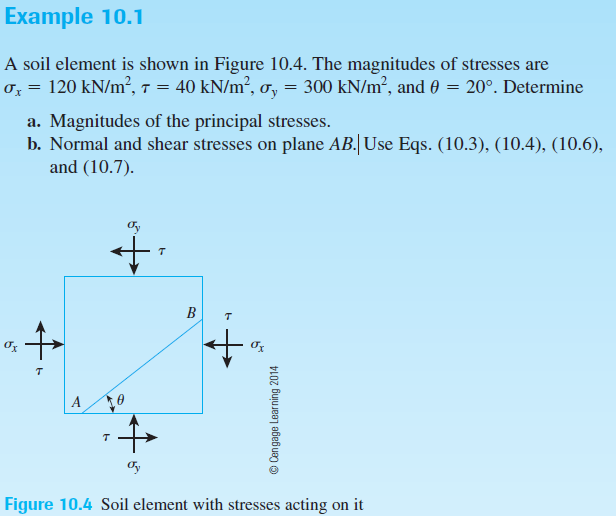

Example 10.1 = = A soil element is shown in Figure 10.4. The magnitudes of stresses are 0 120 kN/m², 7 = 40 kN/m², o, =

[answerhappygod]

Example 10 1 A Soil Element Is Shown In Figure 10 4 The Magnitudes Of Stresses Are 0 120 Kn M 7 40 Kn M O 1 (37.53 KiB) Viewed 25 times

c) Plot the Mohr's Circle
Example 10.1 = = A soil element is shown in Figure 10.4. The magnitudes of stresses are 0 120 kN/m², 7 = 40 kN/m², o, = 300 kN/m², and 0 = 20°. Determine a. Magnitudes of the principal stresses. b. Normal and shear stresses on plane AB. Use Eqs. (10.3), (10.4), (10.6), and (10.7). 5 4. T B T ox 0 AO Cengage Learning 2014 T Ty Figure 10.4 Soil element with stresses acting on it
