Q.B1 Figure B1 shows a closed traverse that starts at station A and ends at A. The coordinates of A are: A (1500.000 mE,

Post by answerhappygod »

Q B1 Figure B1 Shows A Closed Traverse That Starts At Station A And Ends At A The Coordinates Of A Are A 1500 000 Me 1
Q B1 Figure B1 Shows A Closed Traverse That Starts At Station A And Ends At A The Coordinates Of A Are A 1500 000 Me 1 (97.64 KiB) Viewed 27 times

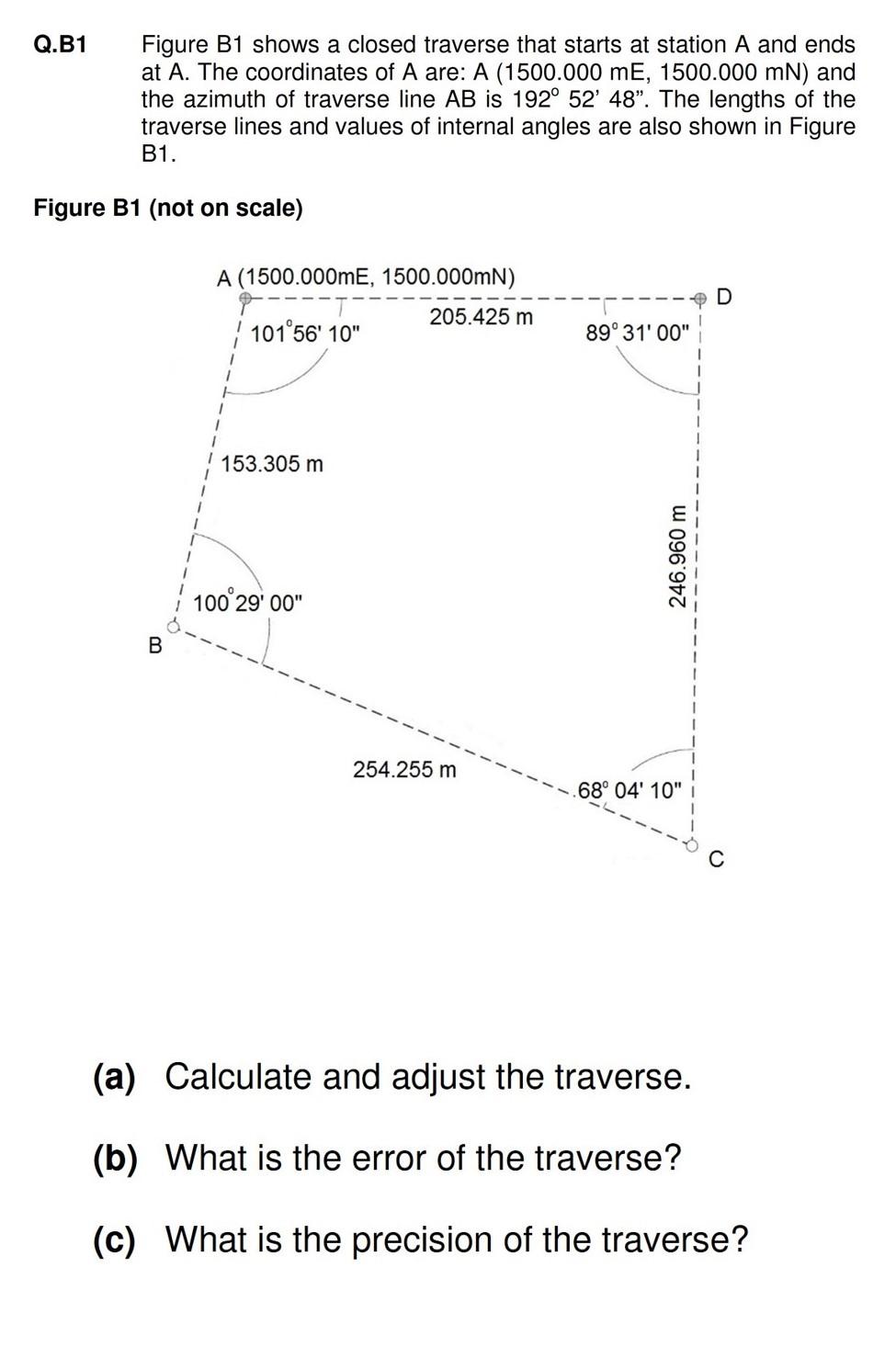

Q.B1 Figure B1 shows a closed traverse that starts at station A and ends at A. The coordinates of A are: A (1500.000 mE, 1500.000 mn) and the azimuth of traverse line AB is 192° 52' 48”. The lengths of the traverse lines and values of internal angles are also shown in Figure B1. Figure B1 (not on scale) A (1500.000mE, 1500.000mN) 205.425 m | 101°56' 10" D 89° 31'00" 1 153.305 m 246.960 m 100'29'00" B 1 254.255 m .68° 04' 10" 1 (a) Calculate and adjust the traverse. (b) What is the error of the traverse? (c) What is the precision of the traverse?
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
