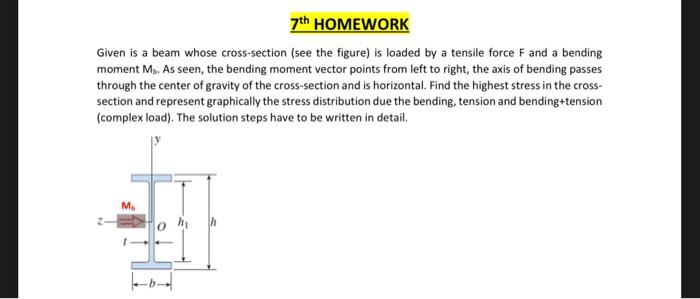

7th HOMEWORK Given is a beam whose cross-section (see the figure) is loaded by a tensile force F and a bending moment Mo. As seen, the bending moment vector points from left to right, the axis of bending passes through the center of gravity of the cross-section and is horizontal. Find the highest stress in the cross- section and represent graphically the stress distribution due the bending, tension and bending+tension (complex load). The solution steps have to be written in detail. M. O h

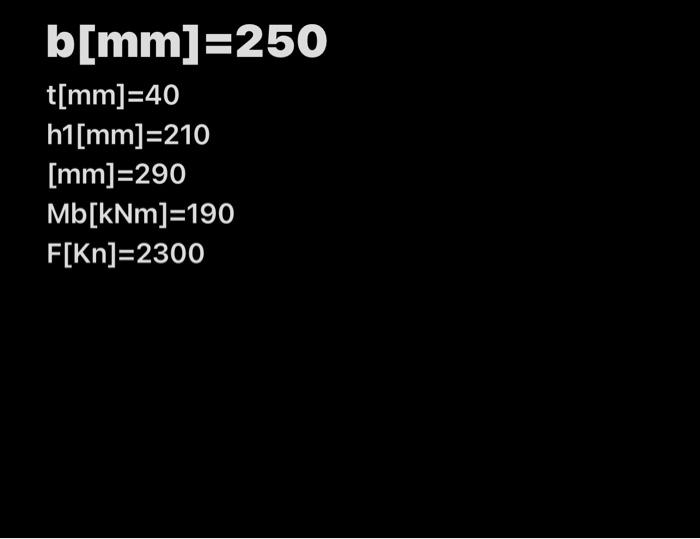

b[mm]=250 t[mm]=40 h1[mm]=210 [mm]=290 Mb[kNm]=190 F[Kn]=2300
