Problem 1 2.00 kg and a block of mass m₂ = 6.00 kg are connected by a A block of mass m₁ = massless string over a pulley

[answerhappygod]

Problem 1 2 00 Kg And A Block Of Mass M 6 00 Kg Are Connected By A A Block Of Mass M Massless String Over A Pulley 1 (52.27 KiB) Viewed 36 times

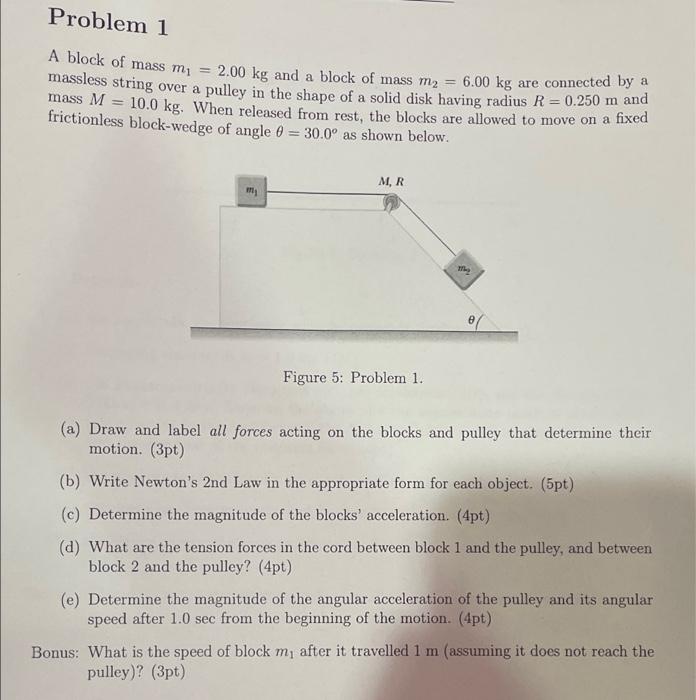

Problem 1 2.00 kg and a block of mass m₂ = 6.00 kg are connected by a A block of mass m₁ = massless string over a pulley in the shape of a solid disk having radius R = 0.250 m and 10.0 kg. When released from rest, the blocks are allowed to move on a fixed frictionless block-wedge of angle = 30.0° as shown below. mass M = M, R ₂ Figure 5: Problem 1. (a) Draw and label all forces acting on the blocks and pulley that determine their motion. (3pt) (b) Write Newton's 2nd Law in the appropriate form for each object. (5pt) (c) Determine the magnitude of the blocks' acceleration. (4pt) (d) What are the tension forces in the cord between block 1 and the pulley, and between block 2 and the pulley? (4pt) (e) Determine the magnitude of the angular acceleration of the pulley and its angular speed after 1.0 sec from the beginning of the motion. (4pt) Bonus: What is the speed of block my after it travelled 1 m (assuming it does not reach the pulley)? (3pt) he
