An RLC circuit driven at its resonant frequency (oo=1/√LC) will achieve its maximum current (Imax=E/R). From the diagram

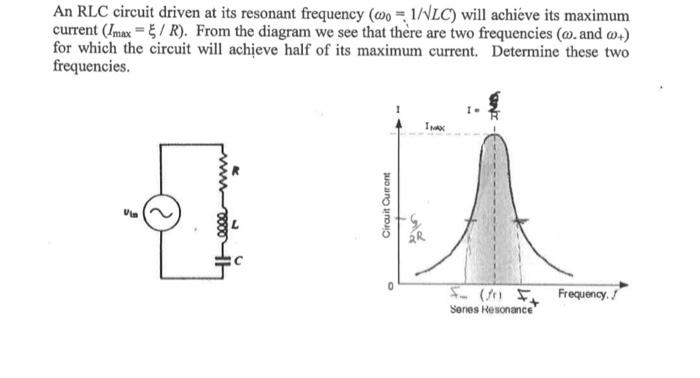

An RLC circuit driven at its resonant frequency (oo=1/√LC) will achieve its maximum current (Imax=E/R). From the diagram we see that there are two frequencies (@. and w+) for which the circuit will achieve half of its maximum current. Determine these two frequencies. IMAX 4 Via Frequency. Circuit Current Senes Resonance
