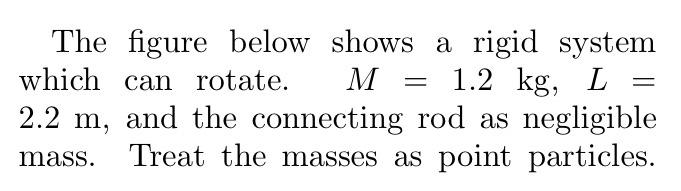

The figure below shows a rigid system which can rotate. M = 1.2 kg, L = 2.2 m, and the connecting rod as negligible mass. Treat the masses as point particles.

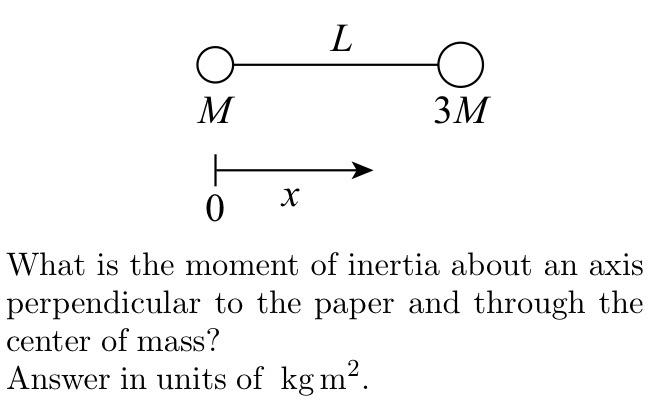

L O M 3M ㅏ X 0 What is the moment of inertia about an axis perpendicular to the paper and through the center of mass? Answer in units of kg m².
