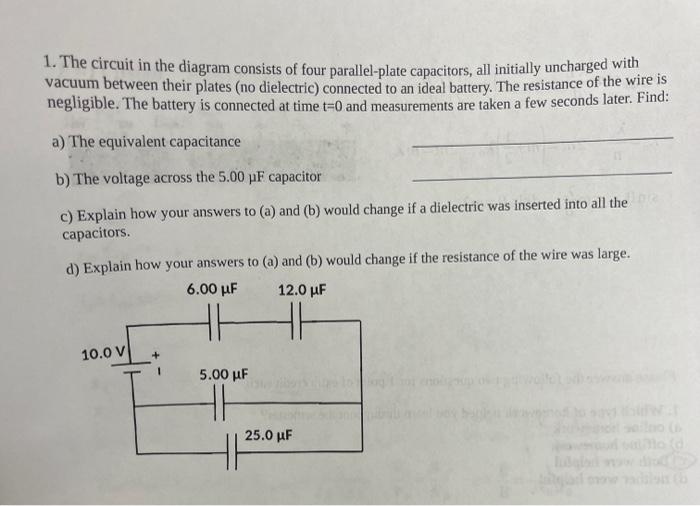

1. The circuit in the diagram consists of four parallel-plate capacitors, all initially uncharged with vacuum between their plates (no dielectric) connected to an ideal battery. The resistance of the wire is negligible. The battery is connected at time t=0 and measurements are taken a few seconds later. Find: a) The equivalent capacitance b) The voltage across the 5.00 pF capacitor c) Explain how your answers to (a) and (b) would change if a dielectric was inserted into all the capacitors. d) Explain how your answers to (a) and (b) would change if the resistance of the wire was large. 6.00 μF 12.0 μF HA 10.0 V 25.0 μF 5.00 μF HH
