4) A3m long 5 kg steel beam is attached to a hinge and two ropes as shown in the figure below. Find the tension in the ropes if the hanging mass is 12 kg 0.7m tzm

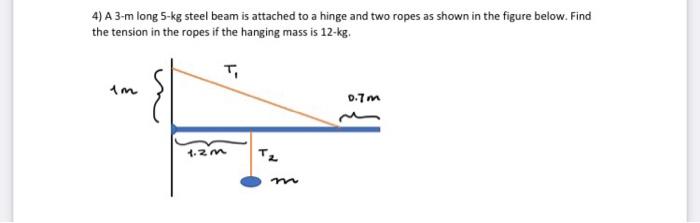

4) A 3-m long 5-kg steel beam is attached to a hinge and two ropes as shown in the figure below. Find the tension in the ropes if the hanging mass is 12-kg. T₁ im 0.7m 1.2m T₂ m
