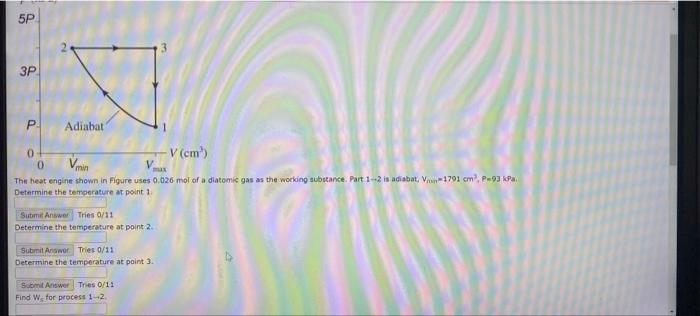

5P 3P P Adiabat 0 -V (cm³) min The heat engine shown in Figure uses 0.026 mol of a diatomic gas as the working substance. Part 1-2 is adiabat, V-1791 cm³, P-93 kPa. Determine the temperature at point 1. Submit Answer Tries 0/11 Determine the temperature at point 2. Submit Answer: Tries 0/11 Determine the temperature at point 3. Submit Answer Tries 0/11 Find W, for process 1-2.

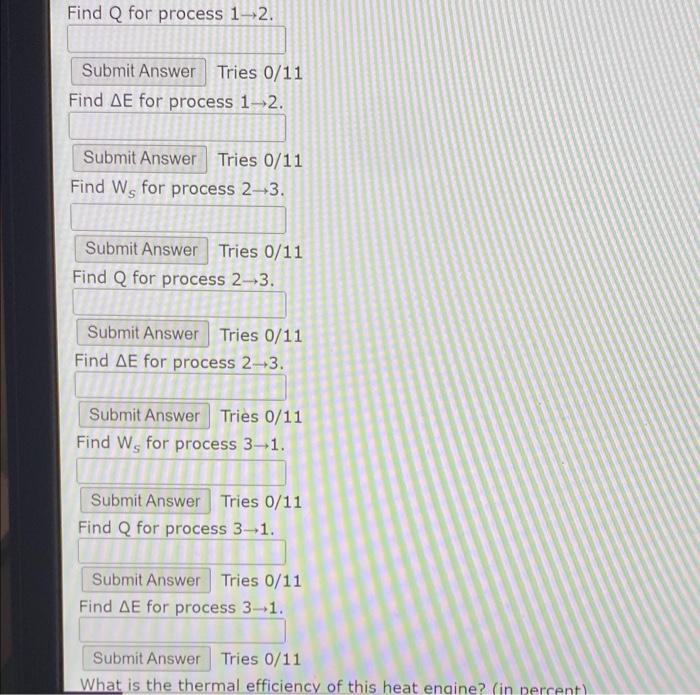

Find Q for process 1-2. Submit Answer Tries 0/11 Find AE for process 1-2. Submit Answer Tries 0/11 Find W, for process 2-3. Submit Answer Tries 0/11 Find Q for process 2-3. Submit Answer Tries 0/11 Find AE for process 2-3. Submit Answer Tries 0/11 Find W, for process 3-1. Submit Answer Tries 0/11 Find Q for process 3-1. Submit Answer Tries 0/11 Find AE for process 3-1. Submit Answer Tries 0/11 What is the thermal efficiency of this heat engine? (in percent).
