The resistors R₁ = 58.5 Q, R₂ = 33 £ and R3 = 78 Q are connected to a 21-V battery as shown in the figure below. What is
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The resistors R₁ = 58.5 Q, R₂ = 33 £ and R3 = 78 Q are connected to a 21-V battery as shown in the figure below. What is

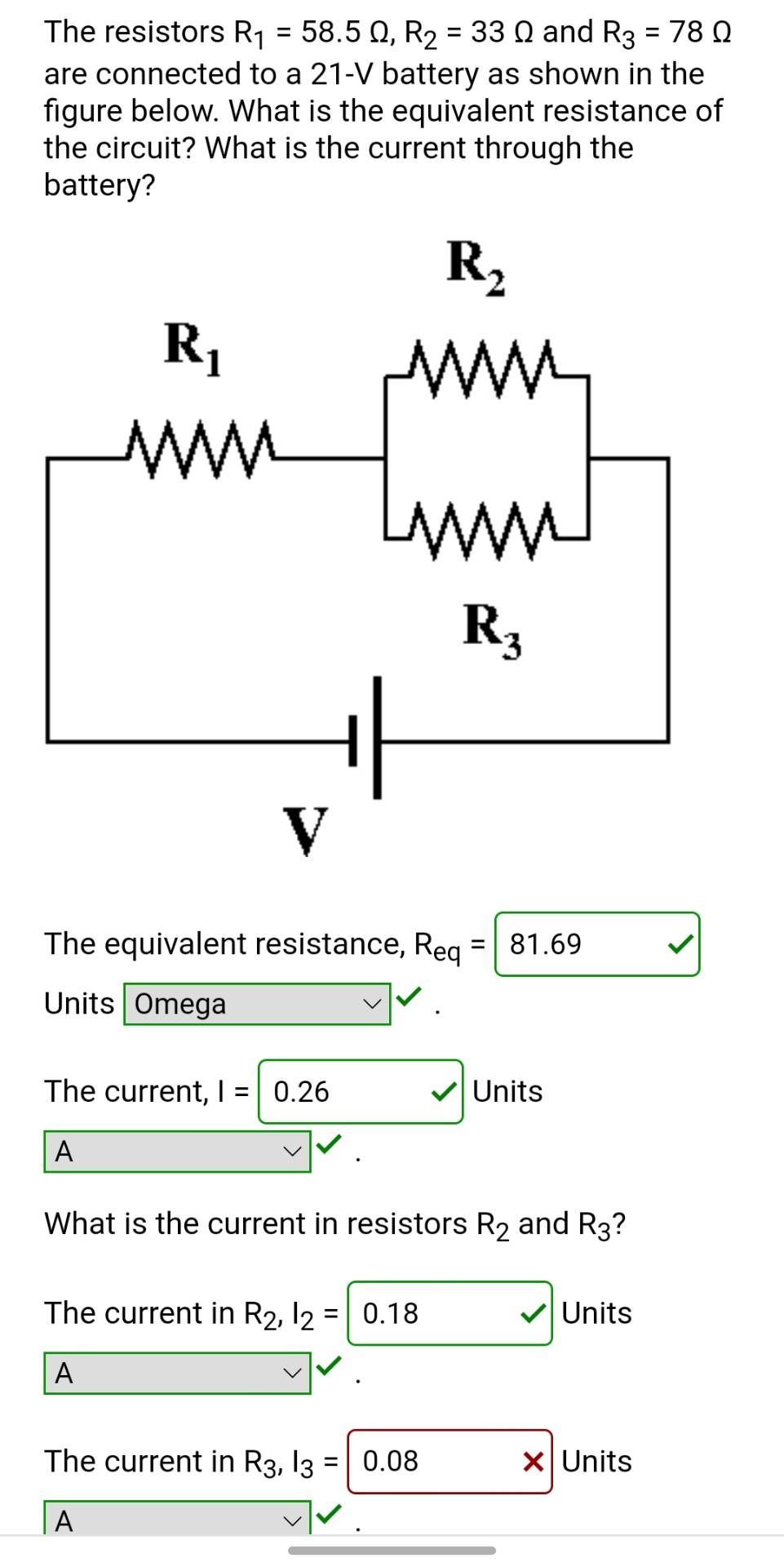

The resistors R₁ = 58.5 Q, R₂ = 33 £ and R3 = 78 Q are connected to a 21-V battery as shown in the figure below. What is the equivalent resistance of the circuit? What is the current through the battery? R₁ www R₂ www www R3 V The equivalent resistance, Req = 81.69 Units Omega The current, I = 0.26 Units A What is the current in resistors R₂ and R3? The current in R2, 12 = 0.18 ✓Units A The current in R3, 13 = 0.08 X Units A
