A circuit is constructed with an AC generator, a resistor, capacitor and inductor as shown. The generator voltage varies in time as & -V₂ - Vb - Emsinut, where Em = 120 V and w=701 radians/second. The values for the remaining circuit components are: R = 81 0, L 126.6 mH, and C = 10.7µF. C d C 1) What is Z, the impedance of the circuit? Q Submit 2) What is Imax, the magnitude of the maximum value of the current in the circuit? A Submit 3) What is p, the phase angle between the generator voltage and the current in this circuit. The phase is defined to be positive if the current leads the generator voltage, and negative otherwise. degrees Submit 4) What is t₁, the first time after t=0 when the voltage across the inductor is zero? seconds Submit & sin(at) M www R L

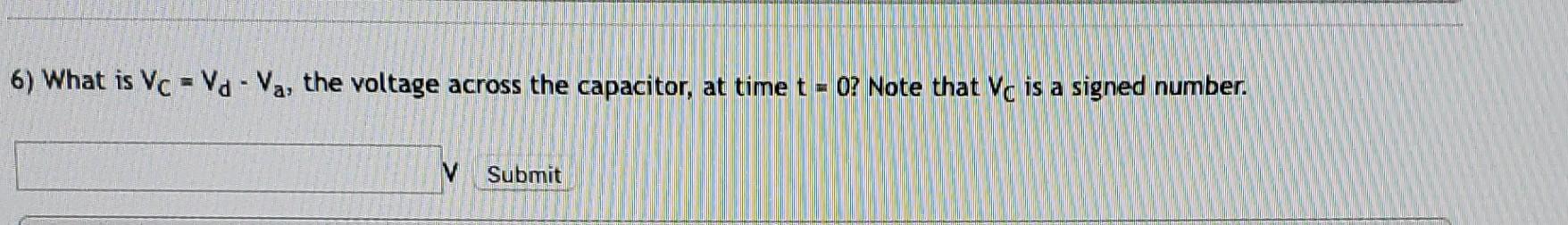

6) What is VcVd - Va, the voltage across the capacitor, at time t = 0? Note that Vc is a signed number. V Submit
