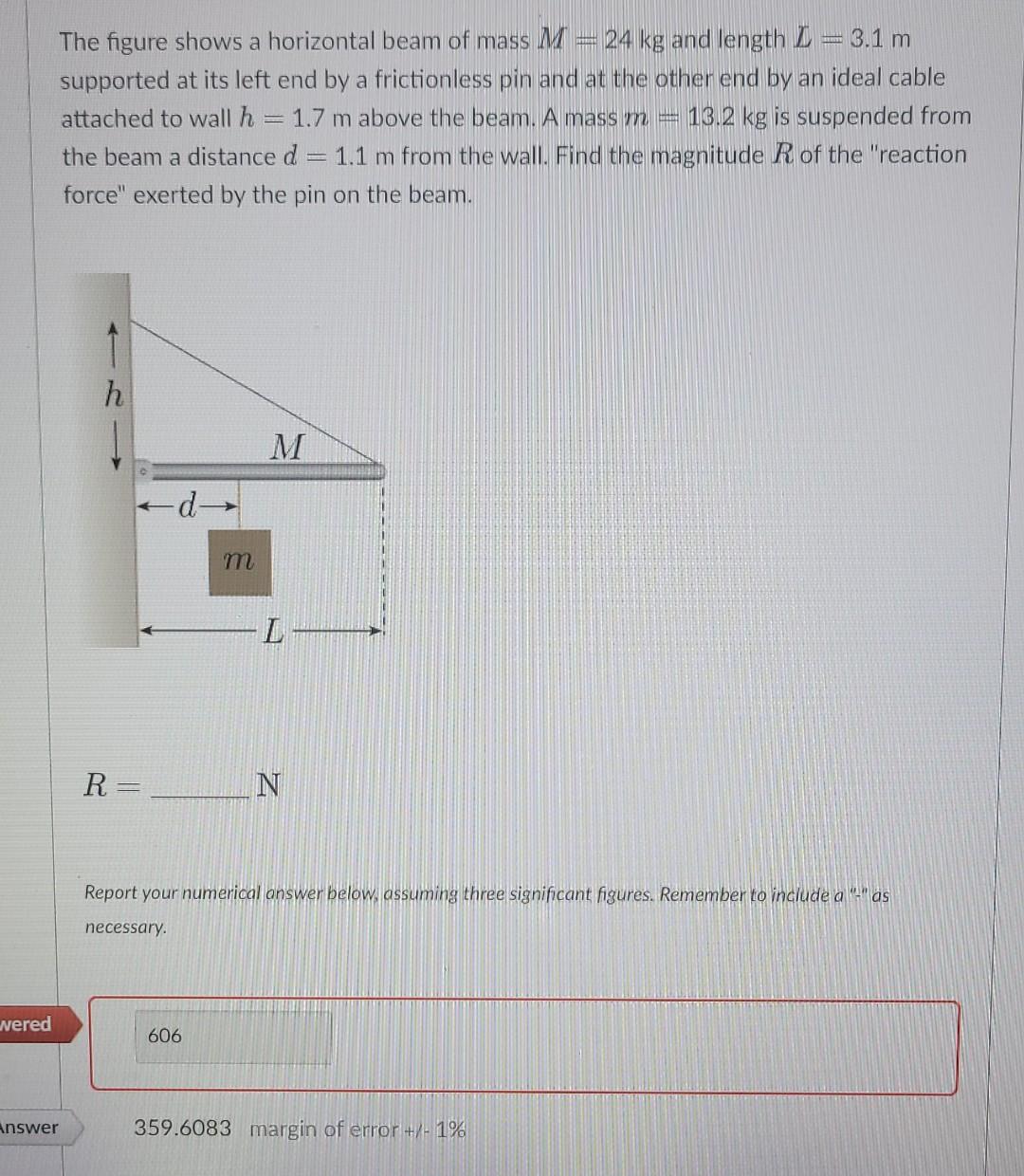

wered Answer The figure shows a horizontal beam of mass M m 24 kg and length = 3.1 m supported at its left end by a frictionless pin and at the other end by an ideal cable attached to wall h = 1.7 m above the beam. A mass m = 13.2 kg is suspended from the beam a distance d 1.1 m from the wall. Find the magnitude R of the "reaction force" exerted by the pin on the beam. P M R= N Report your numerical answer below, assuming three significant figures. Remember to include a "-" as necessary. 606 359.6083 margin of error +/- 1% -d- m
