Question 7 (2 points) D B A uniform thin shelf AB of length 2m and weight 100N is hinged to the wall at a and is support

Post by answerhappygod »

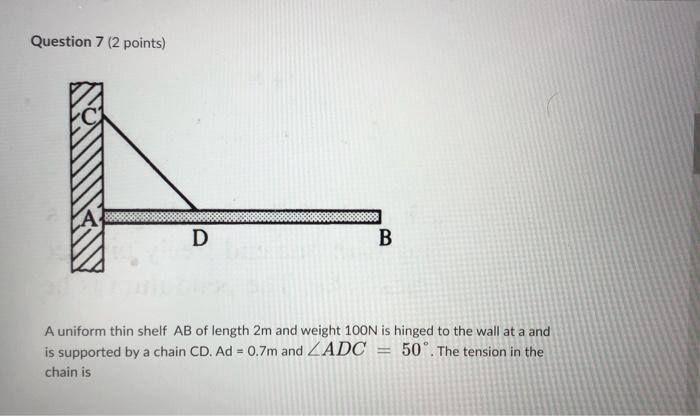

Question 7 2 Points D B A Uniform Thin Shelf Ab Of Length 2m And Weight 100n Is Hinged To The Wall At A And Is Support 1
Question 7 2 Points D B A Uniform Thin Shelf Ab Of Length 2m And Weight 100n Is Hinged To The Wall At A And Is Support 1 (32.79 KiB) Viewed 36 times
Question 7 (2 points) D B A uniform thin shelf AB of length 2m and weight 100N is hinged to the wall at a and is supported by a chain CD. Ad = 0.7m and ZADC = 50°. The tension in the chain is
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
