Prob4: (Note that the figure provided with your final exam has a typo that is V₁ instead of V2 on the top node) Consider

Post by answerhappygod »

Prob4 Note That The Figure Provided With Your Final Exam Has A Typo That Is V Instead Of V2 On The Top Node Consider 1
Prob4 Note That The Figure Provided With Your Final Exam Has A Typo That Is V Instead Of V2 On The Top Node Consider 1 (126.7 KiB) Viewed 21 times

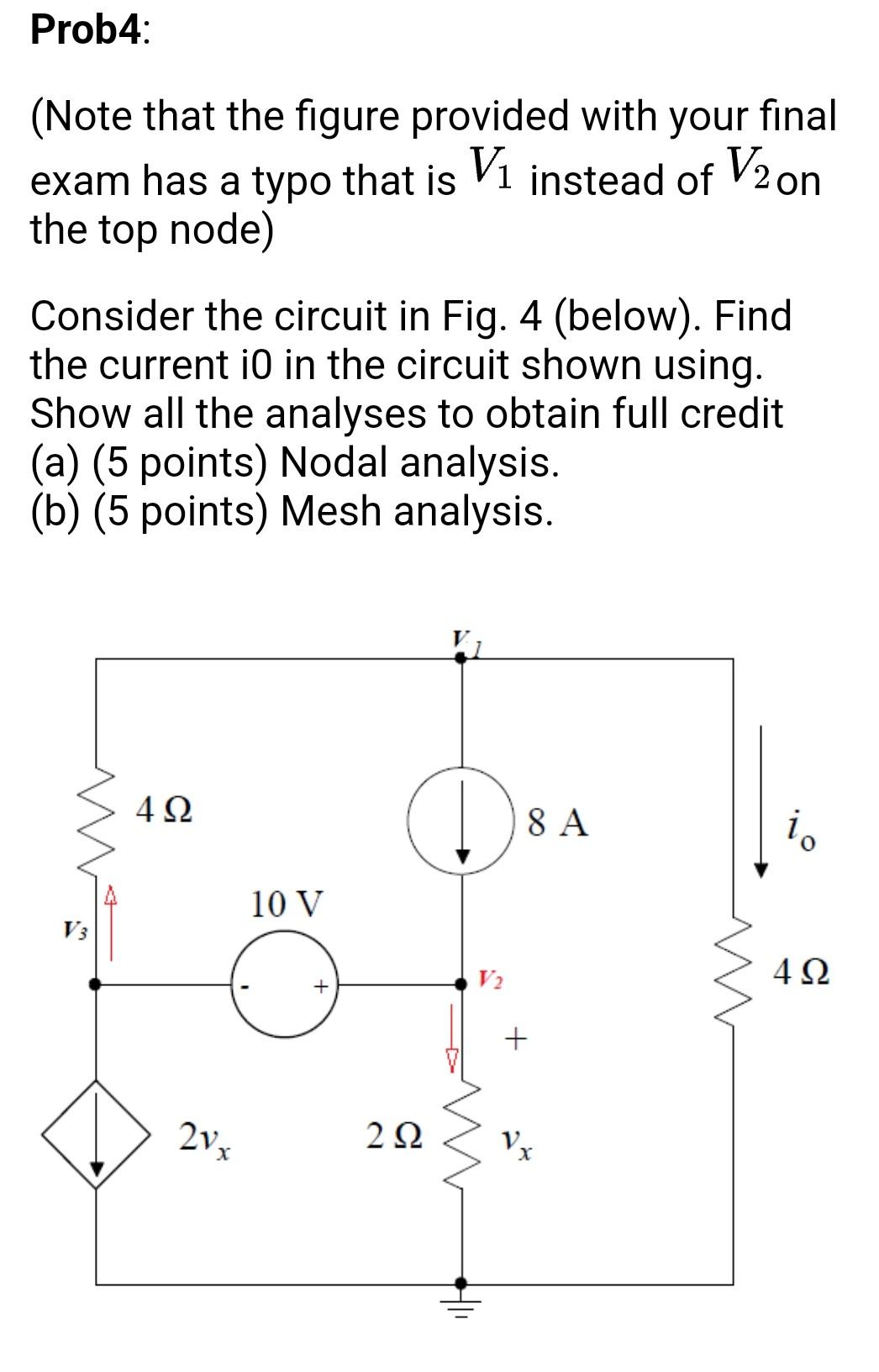

Prob4: (Note that the figure provided with your final exam has a typo that is V₁ instead of V2 on the top node) Consider the circuit in Fig. 4 (below). Find the current i0 in the circuit shown using. Show all the analyses to obtain full credit (a) (5 points) Nodal analysis. (b) (5 points) Mesh analysis. 492 Do V3 21x 10 V 222 8 A + Vx 4Ω
