Espectrometro de masa A mass spectrometer, sketched below, is a device used to separate different ions. Chlorine ions wi

[answerhappygod]

Espectrometro De Masa A Mass Spectrometer Sketched Below Is A Device Used To Separate Different Ions Chlorine Ions Wi 1 (35.49 KiB) Viewed 38 times

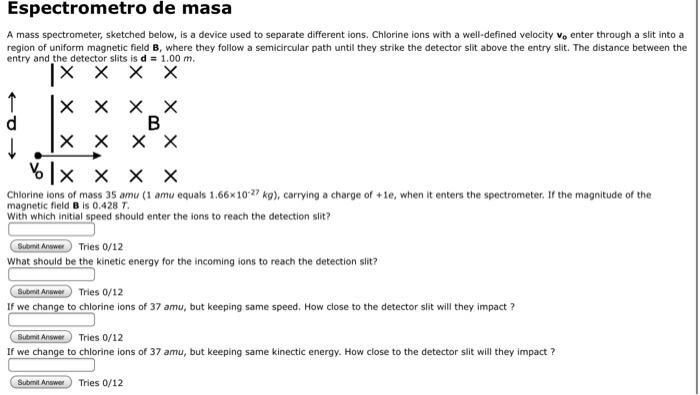

Espectrometro de masa A mass spectrometer, sketched below, is a device used to separate different ions. Chlorine ions with a well-defined velocity vo enter through a slit into a region of uniform magnetic field B, where they follow a semicircular path until they strike the detector slit above the entry slit. The distance between the entry and the detector slits is d = 1.00 m. |x Î X X X B ↓ xx X X x x X X X X Chlorine ions of mass 35 amu (1 amu equals 1.66x10-27 kg), carrying a charge of +1e, when it enters the spectrometer. If the magnitude of the magnetic field B is 0.428 T. With which initial speed should enter the ions to reach the detection slit? Submit Answer Tries 0/12 What should be the kinetic energy for the incoming ions to reach the detection slit? Submit Answer Tries 0/12 If we change to chlorine ions of 37 amu, but keeping same speed. How close to the detector slit will they impact ? Submit Answer Tries 0/12 If we change to chlorine ions of 37 amu, but keeping same kinectic energy. How close to the detector slit will they impact ? Submit Answer Tries 0/12
