Question 12 < > 0/1 pt 15 Details Consider the circuits shown below: a V = 108 V battery is connected to R₁ = 20 02, R₂

[answerhappygod]

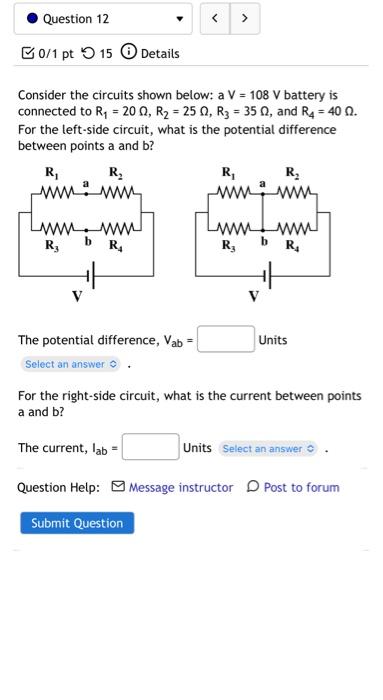

Question 12 0 1 Pt 15 Details Consider The Circuits Shown Below A V 108 V Battery Is Connected To R 20 02 R 1 (31.2 KiB) Viewed 37 times

Question 12 < > 0/1 pt 15 Details Consider the circuits shown below: a V = 108 V battery is connected to R₁ = 20 02, R₂ = 25 02, R3 = 35 02, and R4 = 40 0. For the left-side circuit, what is the potential difference between points a and b? R₂ R₂ R₁ wwwwwwww R₁ www www ww ww R3 b R₁ b R3 R₁ +H The potential difference, Vab = Units Select an answer For the right-side circuit, what is the current between points a and b? The current, lab = Units Select an answer Question Help: Message instructor Post to forum Submit Question
