4. Two flat plates of glass with parallel faces are on a table, one plate on the other. Each plate: is 11.0 cm long and

[answerhappygod]

4 Two Flat Plates Of Glass With Parallel Faces Are On A Table One Plate On The Other Each Plate Is 11 0 Cm Long And 1 (49.58 KiB) Viewed 39 times

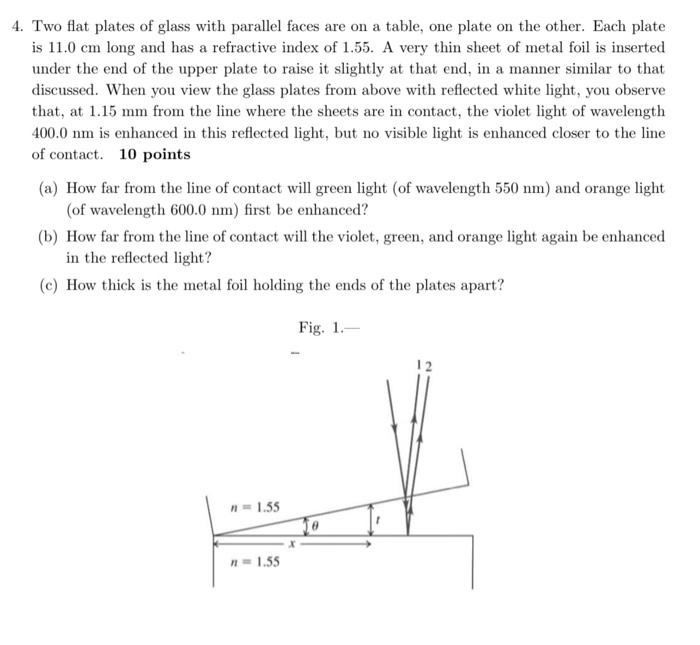

4. Two flat plates of glass with parallel faces are on a table, one plate on the other. Each plate: is 11.0 cm long and has a refractive index of 1.55. A very thin sheet of metal foil is inserted under the end of the upper plate to raise it slightly at that end, in a manner similar to that discussed. When you view the glass plates from above with reflected white light, you observe that, at 1.15 mm from the line where the sheets are in contact, the violet light of wavelength 400.0 nm is enhanced in this reflected light, but no visible light is enhanced closer to the line of contact. 10 points (a) How far from the line of contact will green light (of wavelength 550 nm) and orange light (of wavelength 600.0 nm) first be enhanced? (b) How far from the line of contact will the violet, green, and orange light again be enhanced in the reflected light? (c) How thick is the metal foil holding the ends of the plates apart? Fig. 1.- n = 1.55 n = 1.55
