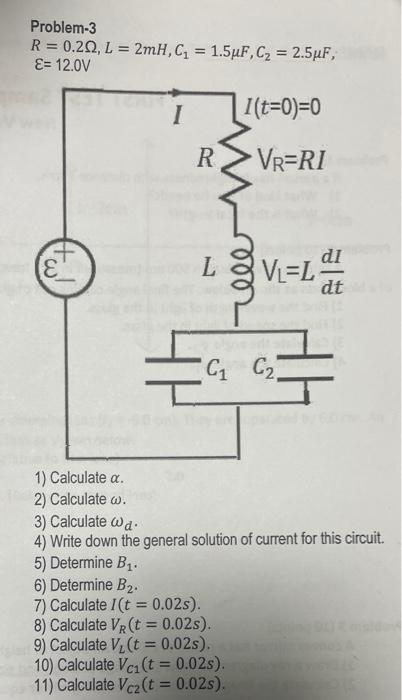

- Problem 3 R 0 20 L 2mh C 1 5uf C 2 5uf E 12 0v I I T 0 0 Vr Ri Vl L Tw R Di Dt L C C 1 Calculate 1 (32.99 KiB) Viewed 38 times
Problem-3 R = 0.20, L = 2mH, C₁ = 1.5µF, C₂ = 2.5µF, E= 12.0V I I(t=0)=0 VR-RI VL-L- tw! R di dt L € C₁ C₂. 1) Calculate
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Problem-3 R = 0.20, L = 2mH, C₁ = 1.5µF, C₂ = 2.5µF, E= 12.0V I I(t=0)=0 VR-RI VL-L- tw! R di dt L € C₁ C₂. 1) Calculate
Problem-3 R = 0.20, L = 2mH, C₁ = 1.5µF, C₂ = 2.5µF, E= 12.0V I I(t=0)=0 VR-RI VL-L- tw! R di dt L € C₁ C₂. 1) Calculate a. 2) Calculate w. 3) Calculate wd. 4) Write down the general solution of current for this circuit. 5) Determine B₁. 6) Determine B₂. 7) Calculate I(t = 0.02s). 8) Calculate VR (t = 0.02s). 9) Calculate V₁ (t = 0.02s). 10) Calculate Vc₁(t = 0.02s). 11) Calculate Vcz (t = 0.02s).
