help solve 20

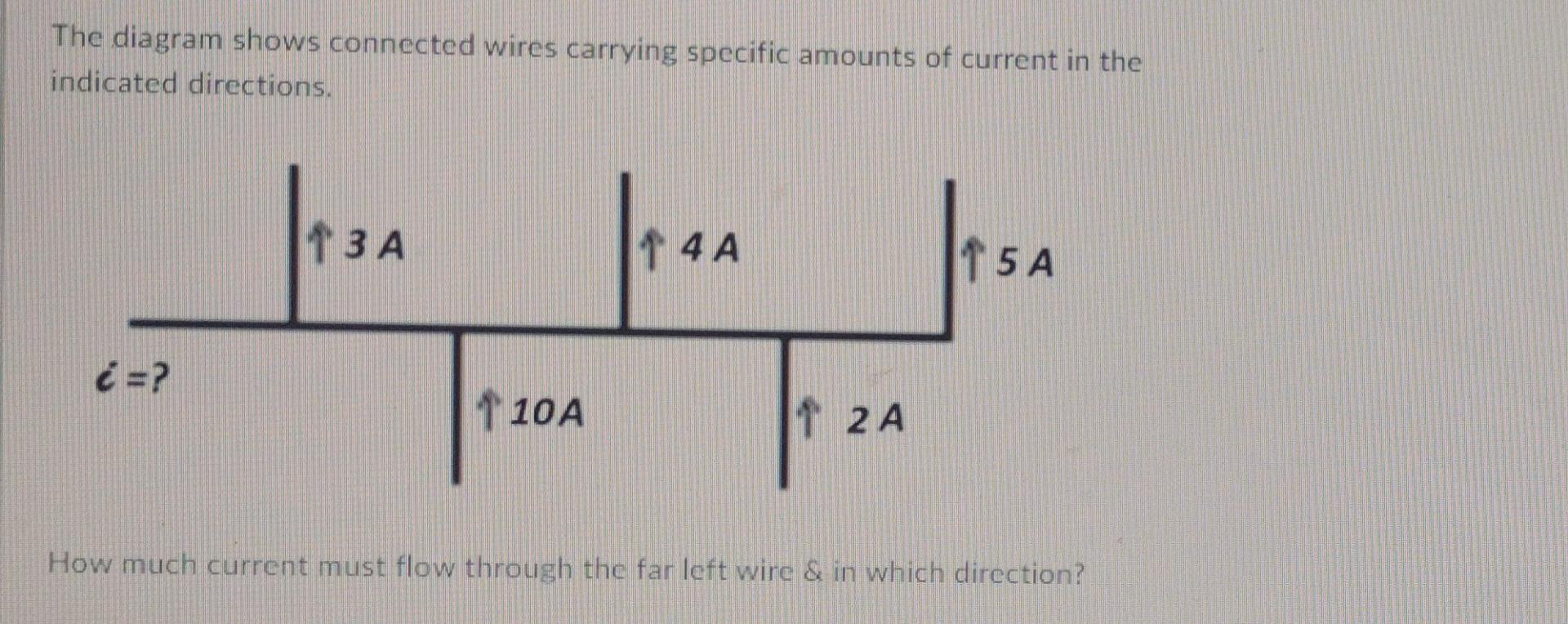

The diagram shows connected wires carrying specific amounts of current in the indicated directions. 13 A 14 A 15A C=? 110A 12 A How much current must flow through the far left wire & in which direction?

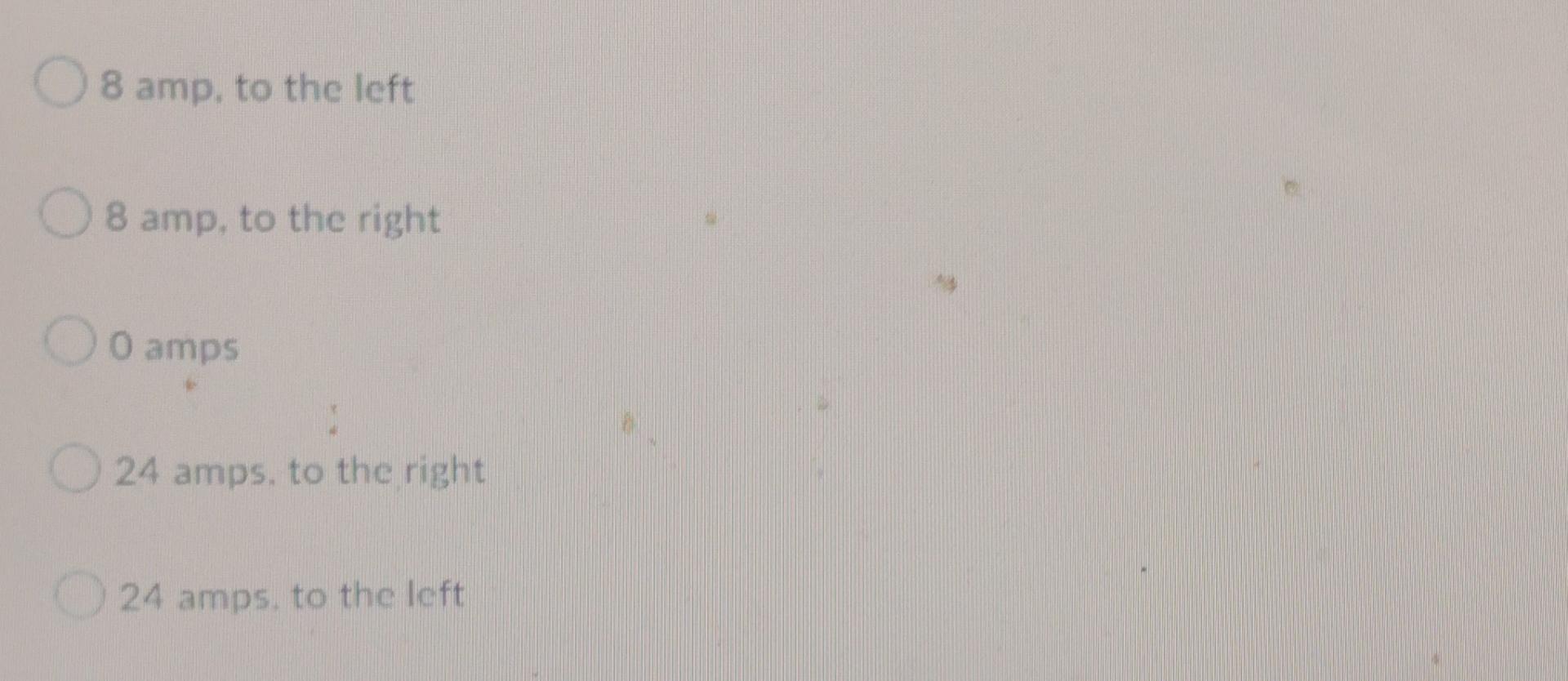

8 amp, to the left 8 amp, to the right 0 amps 24 amps, to the right 24 amps, to the left
