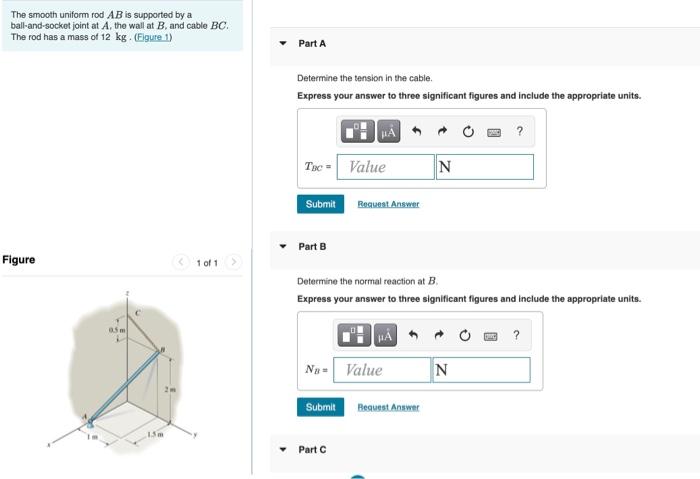

The smooth uniform rod AB is supported by a ball-and-socket joint at A, the wall at B, and cable BC. The rod has a mass of 12 kg. (Eigure 1) Part A Determine the tension in the cable. Express your answer to three significant figures and include the appropriate units. ? Tuc - Value N Submit Reguest Answer Part B Figure 1 of 1 Determine the normal reaction at B Express your answer to three significant figures and include the appropriate units. 05m ? Ny Value N Submit Request Answer 15m Part C

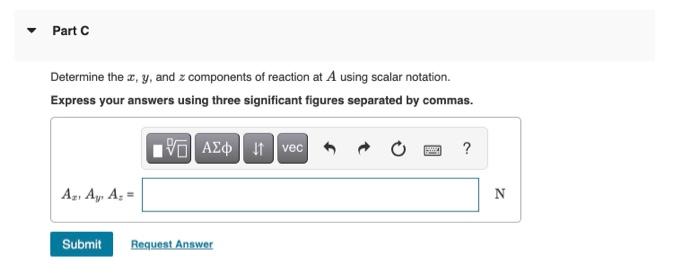

Part C Determine the x, y, and z components of reaction at A using scalar notation. Express your answers using three significant figures separated by commas. PO AQ 11 vec ? A. A, A₂= N Submit Request Answer
