Physic 122 Test 3 Magnetic Fields. Name Ho = 4x x 107 Tm/A, B = H, 1/2nr, F = qvBsine, F = BILsine 1) 10.0 cm 15.0 cm IA

[answerhappygod]

Physic 122 Test 3 Magnetic Fields Name Ho 4x X 107 Tm A B H 1 2nr F Qvbsine F Bilsine 1 10 0 Cm 15 0 Cm Ia 1 (44.9 KiB) Viewed 36 times

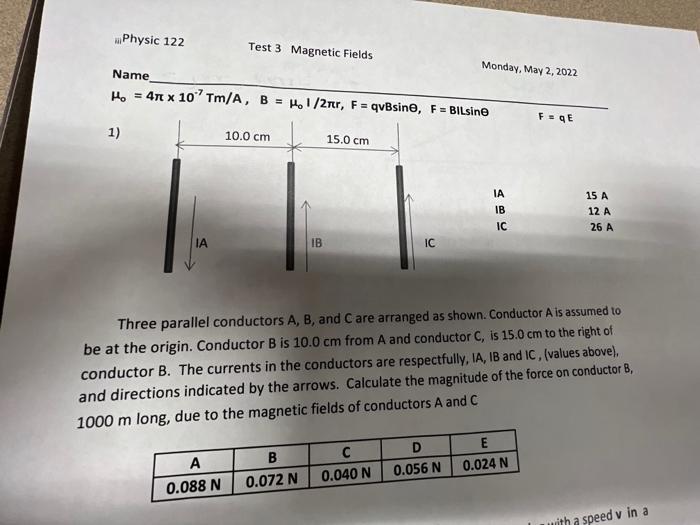

Physic 122 Test 3 Magnetic Fields. Name Ho = 4x x 107 Tm/A, B = H, 1/2nr, F = qvBsine, F = BILsine 1) 10.0 cm 15.0 cm IA 15 A IB 12 A IC 26 A IA IB IC Three parallel conductors A, B, and C are arranged as shown. Conductor A is assumed to be at the origin. Conductor B is 10.0 cm from A and conductor C, is 15.0 cm to the right of conductor B. The currents in the conductors are respectfully, IA, IB and IC, (values above), and directions indicated by the arrows. Calculate the magnitude of the force on conductor B, 1000 m long, due to the magnetic fields of conductors A and C D E C A B 0.072 N 0.056 N 0.024 N 0.040 N 0.088 N with a speed v in a Monday, May 2, 2022 F =qE
