Solve the reaction forces on the beam due to the forces shown and draw and label the shear and moment diagram. 400 lb 40

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Solve the reaction forces on the beam due to the forces shown and draw and label the shear and moment diagram. 400 lb 40

Post by answerhappygod »

Solve The Reaction Forces On The Beam Due To The Forces Shown And Draw And Label The Shear And Moment Diagram 400 Lb 40 1
Solve The Reaction Forces On The Beam Due To The Forces Shown And Draw And Label The Shear And Moment Diagram 400 Lb 40 1 (79.48 KiB) Viewed 27 times

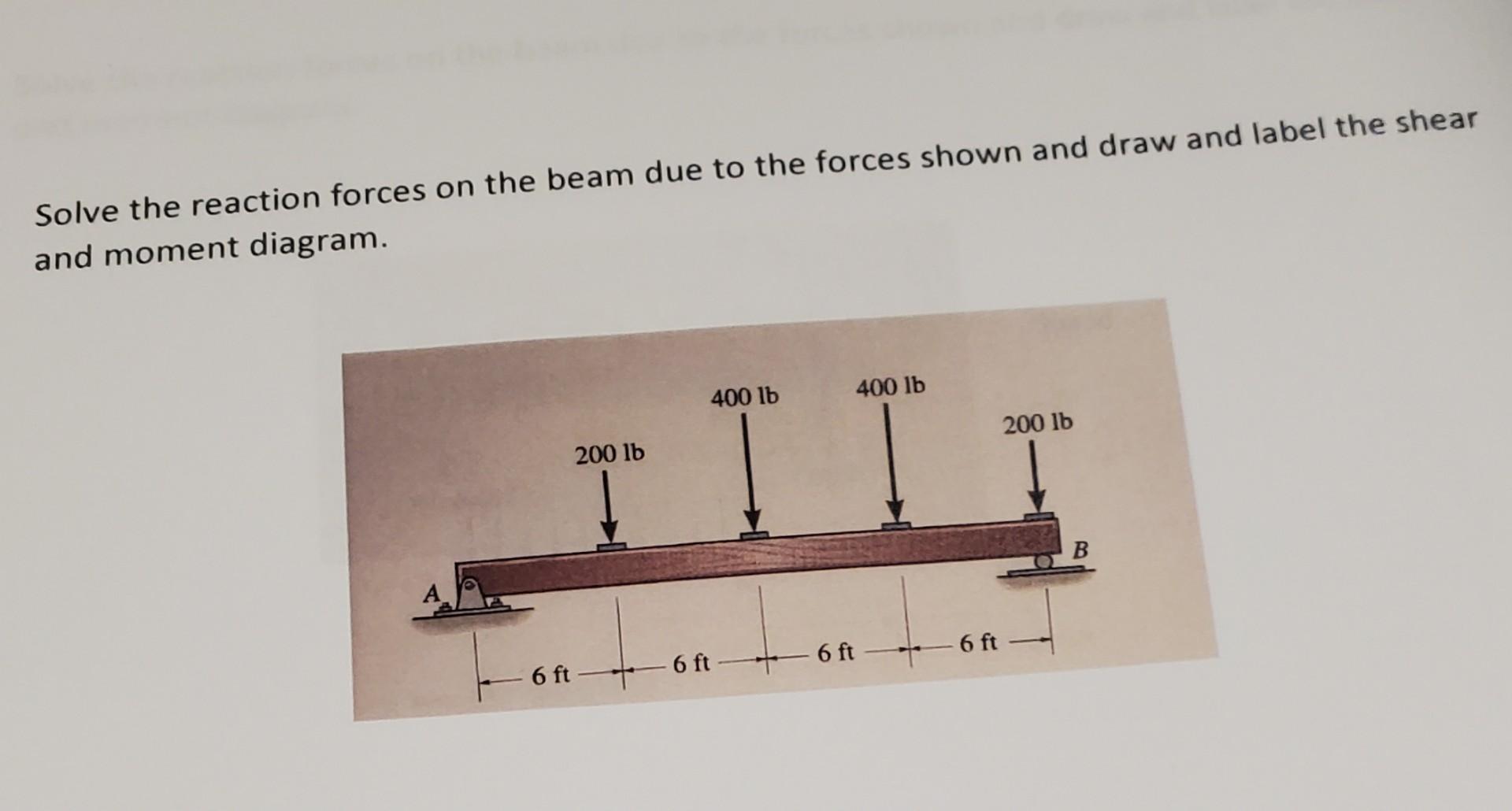

Solve the reaction forces on the beam due to the forces shown and draw and label the shear and moment diagram. 400 lb 400 lb 200 lb 200 lb 6 ft 6 ft 6 ft 6 ft B
