A ray from an object enters a 45-degree deviation prism through the vertical surface at normal incidence as shown in the

Post by answerhappygod »

A Ray From An Object Enters A 45 Degree Deviation Prism Through The Vertical Surface At Normal Incidence As Shown In The 1
A Ray From An Object Enters A 45 Degree Deviation Prism Through The Vertical Surface At Normal Incidence As Shown In The 1 (290.85 KiB) Viewed 33 times

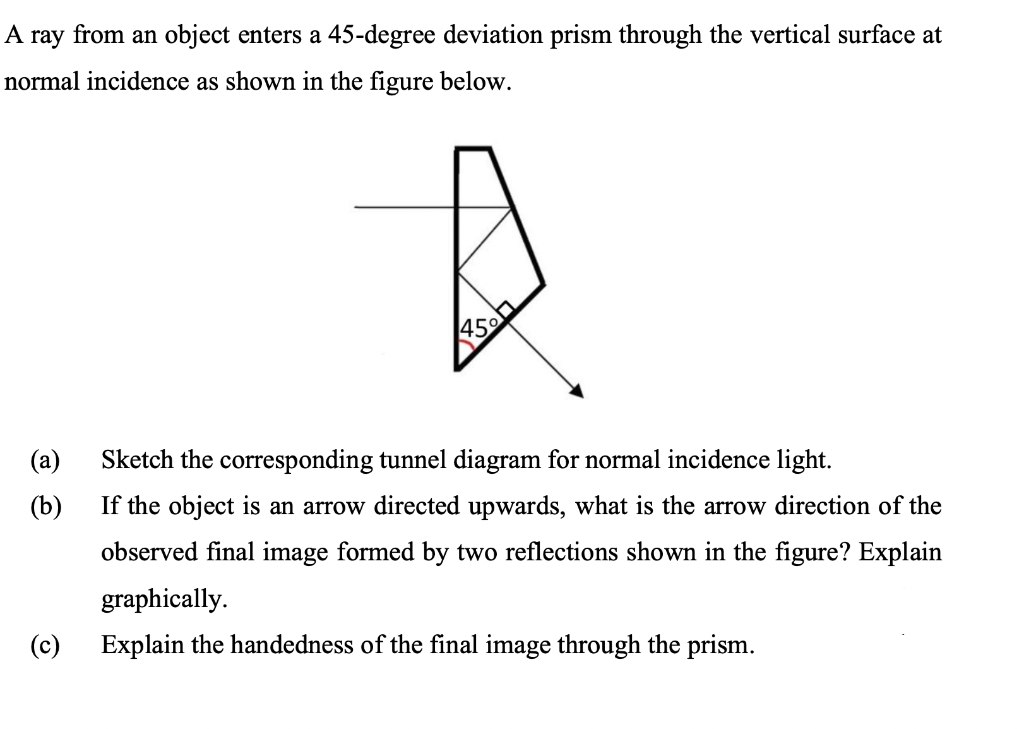

A ray from an object enters a 45-degree deviation prism through the vertical surface at normal incidence as shown in the figure below. 45% (a) Sketch the corresponding tunnel diagram for normal incidence light. (b) If the object is an arrow directed upwards, what is the arrow direction of the observed final image formed by two reflections shown in the figure? Explain graphically. (c) Explain the handedness of the final image through the prism.
