If a bending moment of M=20 Kip ft is applied to the beam about its z-axis, whose cross section is shown in Figure Quest

Post by answerhappygod »

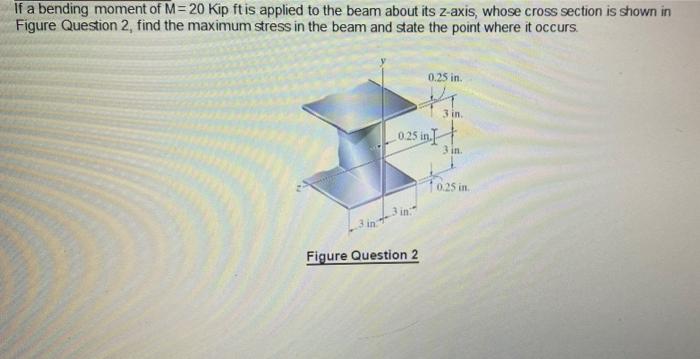

If A Bending Moment Of M 20 Kip Ft Is Applied To The Beam About Its Z Axis Whose Cross Section Is Shown In Figure Quest 1
If A Bending Moment Of M 20 Kip Ft Is Applied To The Beam About Its Z Axis Whose Cross Section Is Shown In Figure Quest 1 (28.99 KiB) Viewed 34 times
If a bending moment of M=20 Kip ft is applied to the beam about its z-axis, whose cross section is shown in Figure Question 2, find the maximum stress in the beam and state the point where it occurs. 0.25 in. 3 in. 3 in. 10.25 in. 0.25 in Figure Question 2
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
