A simple supported beam is shown in Figure 1. Determine the maximum tensile stress and maximum compressive stress and th

[answerhappygod]

A Simple Supported Beam Is Shown In Figure 1 Determine The Maximum Tensile Stress And Maximum Compressive Stress And Th 1 (51.38 KiB) Viewed 42 times

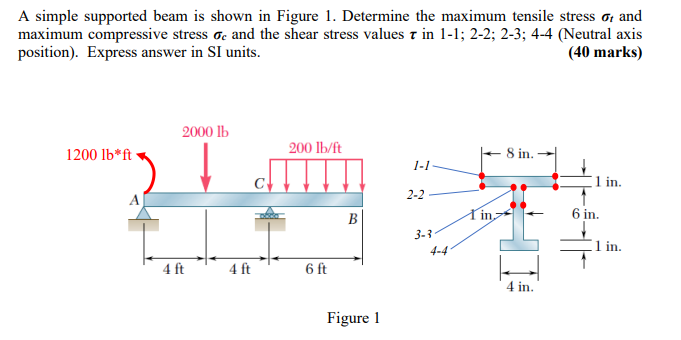

A simple supported beam is shown in Figure 1. Determine the maximum tensile stress and maximum compressive stress and the shear stress values τ in 1-1; 2-2; 2-3; 4-4 (Neutral axis position). Express answer in SI units. (40 marks) 2000 lb 200 lb/ft 8 in. 1200 lb*ft I 1-1 1 in. 4 ft 4 ft 6 ft B Figure 1 2-2 3-3 4-4 inz 4 in. 6 in. 1 in.
