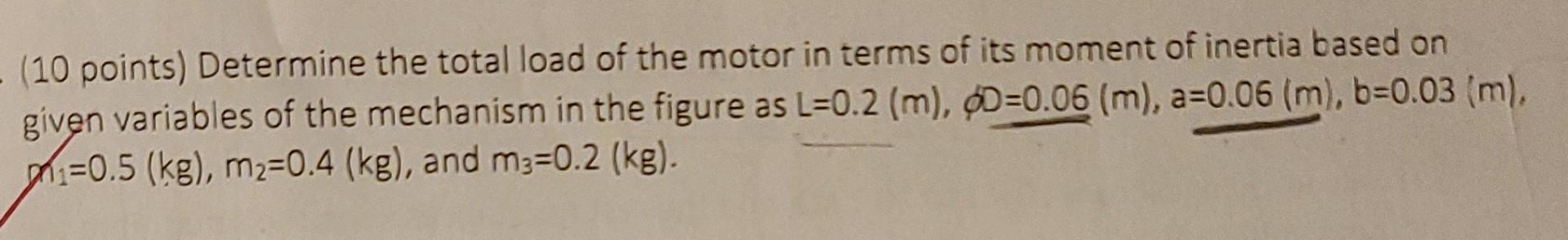

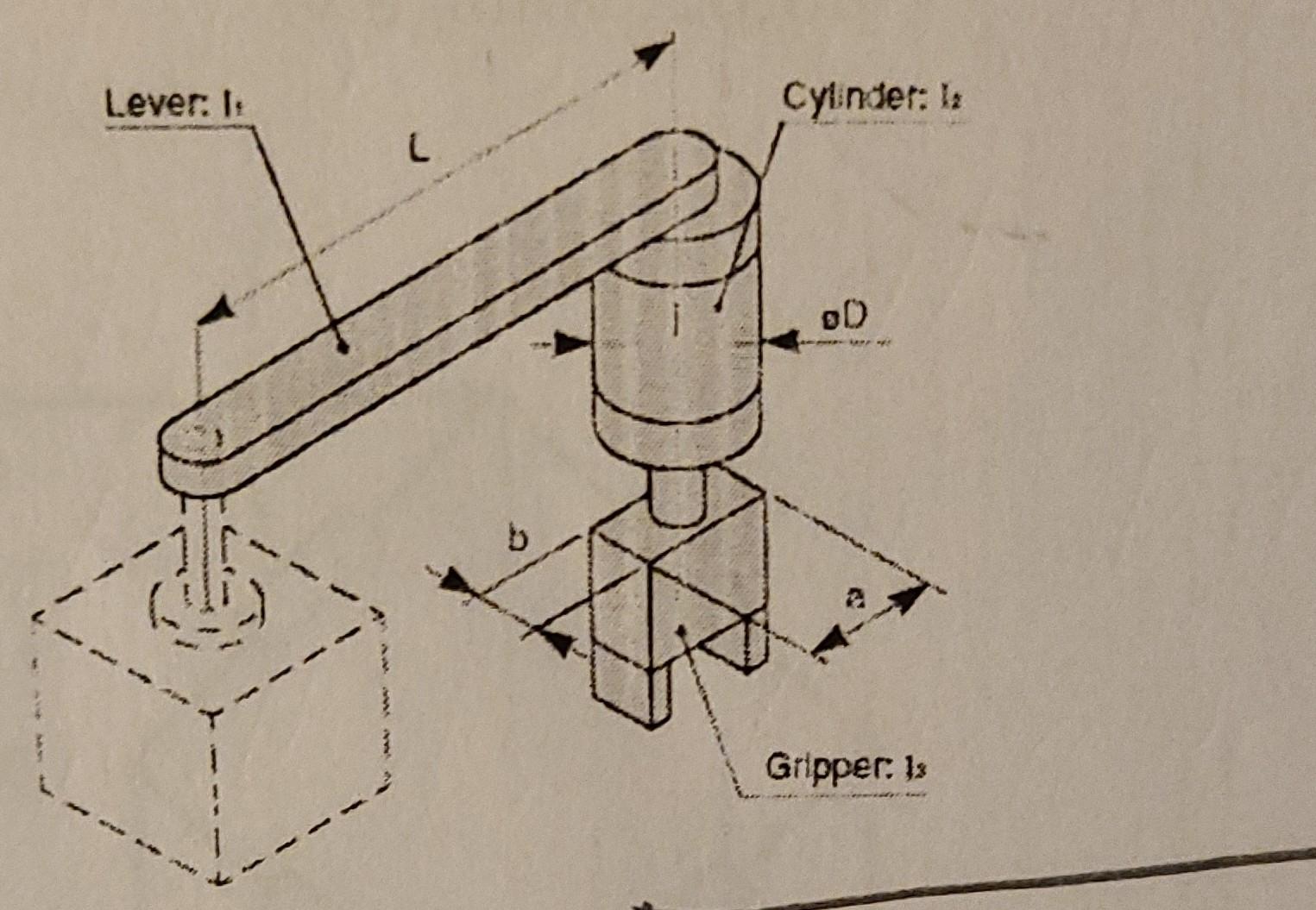

- (10 points) Determine the total load of the motor in terms of its moment of inertia based on given variables of the mechanism in the figure as L=0.2 (m), D=0.06 (m), a=0.06 (m), b=0.03 (m), 1-0.5 (kg), m₂-0.4 (kg), and m3-0.2 (kg).
Lever: It ( Cylinder: Iz 9P Gripper: Is
