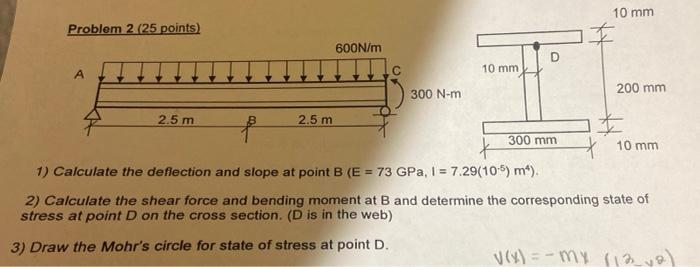

10 mm Problem 2 (25 points) D A 200 mm 300 N-m 2.5 m 2.5 m f 300 mm 10 mm 1) Calculate the deflection and slope at point

[answerhappygod]

10 Mm Problem 2 25 Points D A 200 Mm 300 N M 2 5 M 2 5 M F 300 Mm 10 Mm 1 Calculate The Deflection And Slope At Point 1 (26.92 KiB) Viewed 17 times

10 mm Problem 2 (25 points) D A 200 mm 300 N-m 2.5 m 2.5 m f 300 mm 10 mm 1) Calculate the deflection and slope at point B (E = 73 GPa, 1 = 7.29(10-5) m²). 2) Calculate the shear force and bending moment at B and determine the corresponding state of stress at point D on the cross section. (D is in the web) 3) Draw the Mohr's circle for state of stress at point D. √(x) = -mx (12 600N/m 10 mm
