5. "Wet steam" at 200 kPa has 40% of its mass as liquid. The water is contained in a spring-loaded piston-cylinder, with

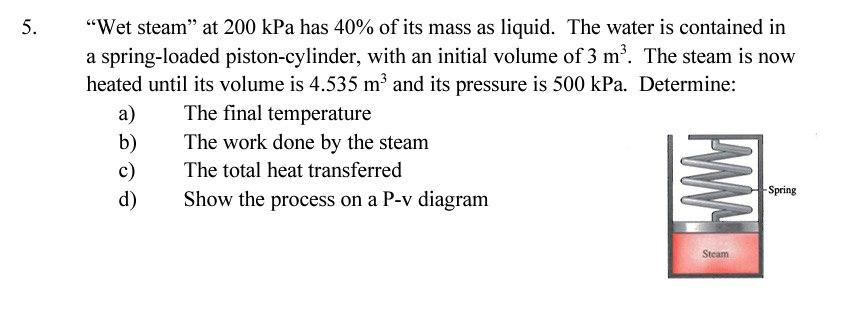

5. "Wet steam" at 200 kPa has 40% of its mass as liquid. The water is contained in a spring-loaded piston-cylinder, with an initial volume of 3 m³. The steam is now heated until its volume is 4.535 m³ and its pressure is 500 kPa. Determine: a) The final temperature b) The work done by the steam c) The total heat transferred d) Show the process on a P-v diagram www Steam -Spring
