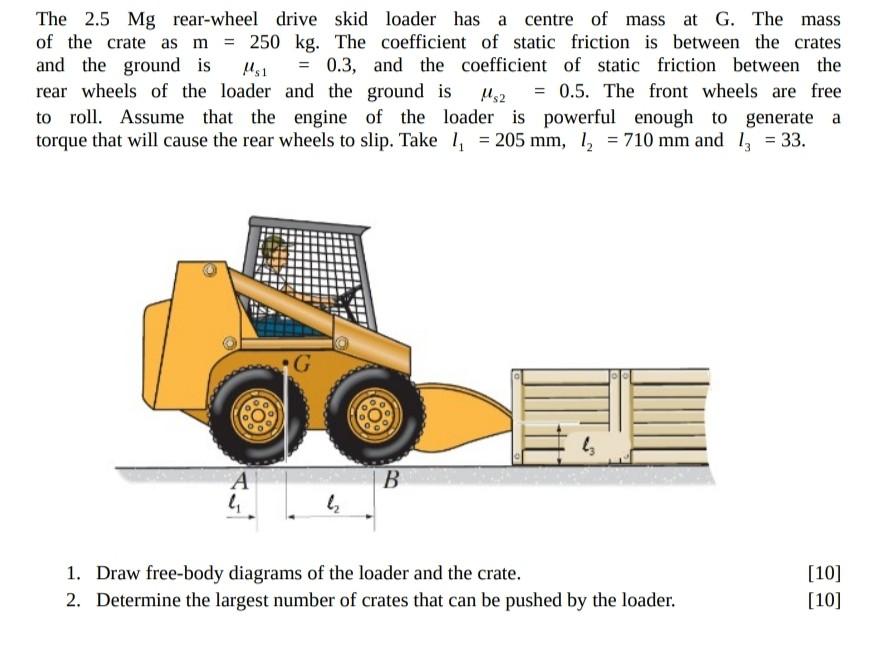

The 2.5 Mg rear-wheel drive skid loader has a centre of mass at G. The mass of the crate as m = 250 kg. The coefficient of static friction is between the crates and the ground is Ms1 = 0.3, and the coefficient of static friction between the rear wheels of the loader and the ground is Ms2 = 0.5. The front wheels are free to roll. Assume that the engine of the loader is powerful enough to generate a torque that will cause the rear wheels to slip. Take 1₁ = 205 mm, 1₂ = 710 mm and 13 = 33. G 43 B 4₁ k 1. Draw free-body diagrams of the loader and the crate. [10] 2. Determine the largest number of crates that can be pushed by the loader. [10] A
