pring 2022 Question 4 (5 Points) You are designing a sheet metal bend with 40 degrees made of 2024 Aluminum that has a t

Post by answerhappygod »

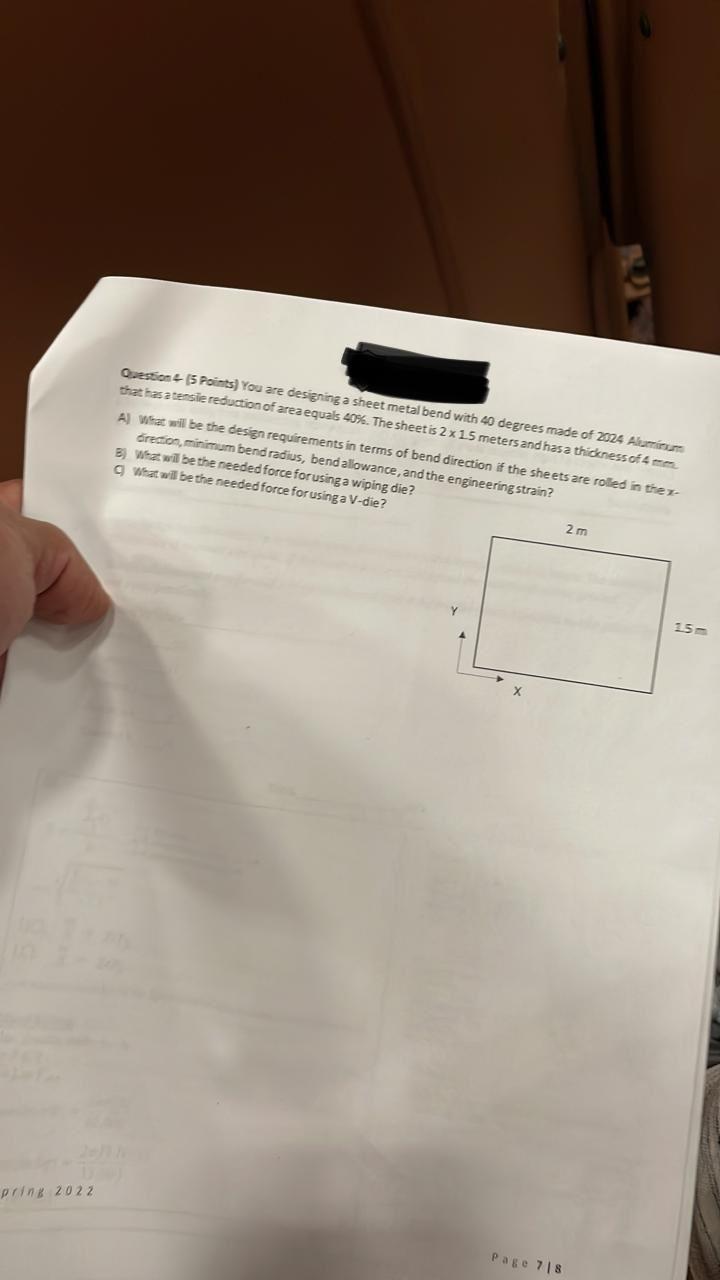

Pring 2022 Question 4 5 Points You Are Designing A Sheet Metal Bend With 40 Degrees Made Of 2024 Aluminum That Has A T 1
Pring 2022 Question 4 5 Points You Are Designing A Sheet Metal Bend With 40 Degrees Made Of 2024 Aluminum That Has A T 1 (47.73 KiB) Viewed 19 times
pring 2022 Question 4 (5 Points) You are designing a sheet metal bend with 40 degrees made of 2024 Aluminum that has a tensile reduction of area equals 40%. The sheet is 2 x 1.5 meters and has a thickness of 4 mm. Al What will be the design requirements in terms of bend direction if the sheets are rolled in the x- direction, minimum bend radius, bend allowance, and the engineering strain? B) What will be the needed force for using a wiping die? What will be the needed force for using a V-die? 2 m 15m Page 718
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
