Box your final answers 1. Tension Joint Design and Analysis (20 points) An external tensile load is applied to the joint

Post by answerhappygod »

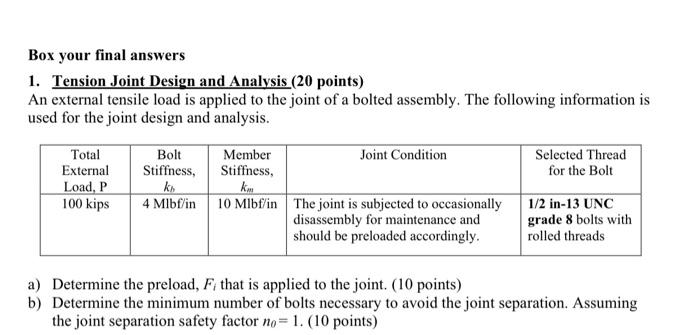

Box Your Final Answers 1 Tension Joint Design And Analysis 20 Points An External Tensile Load Is Applied To The Joint 1
Box Your Final Answers 1 Tension Joint Design And Analysis 20 Points An External Tensile Load Is Applied To The Joint 1 (38.47 KiB) Viewed 21 times
Box your final answers 1. Tension Joint Design and Analysis (20 points) An external tensile load is applied to the joint of a bolted assembly. The following information is used for the joint design and analysis. Bolt Member Joint Condition Total External Selected Thread for the Bolt Load, P Stiffness, kh 4 Mlbf/in Stiffness, km 10 Mlbf/in 100 kips The joint is subjected to occasionally disassembly for maintenance and should be preloaded accordingly. 1/2 in-13 UNC grade 8 bolts with rolled threads a) Determine the preload, F, that is applied to the joint. (10 points) b) Determine the minimum number of bolts necessary to avoid the joint separation. Assuming the joint separation safety factor no= 1. (10 points)
