7/11 The gear train shown is used to transmit motion to the vertical rack D. If an input torque M is applied to gear A,

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

7/11 The gear train shown is used to transmit motion to the vertical rack D. If an input torque M is applied to gear A,

Post by answerhappygod »

7 11 The Gear Train Shown Is Used To Transmit Motion To The Vertical Rack D If An Input Torque M Is Applied To Gear A 1
7 11 The Gear Train Shown Is Used To Transmit Motion To The Vertical Rack D If An Input Torque M Is Applied To Gear A 1 (16.09 KiB) Viewed 44 times

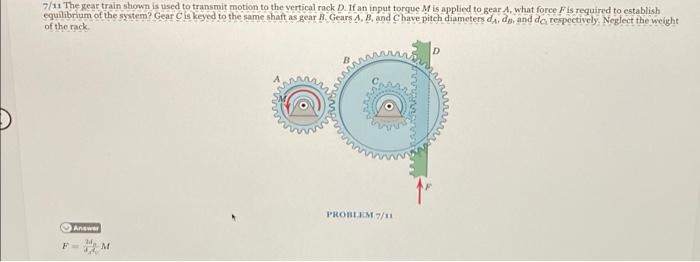

7/11 The gear train shown is used to transmit motion to the vertical rack D. If an input torque M is applied to gear A, what force Fis required to establish i equilibrium of the system? Gear C is keyed to the same shaft as gear B. Gears A, B, and Chave pitch diameters da, da, and de, respectively, Neglect the weight of the rack. F Answer M Birther MM V PROBLEM 7/11
