Problem 02: Consider the thin rod of length / moving in the x - y plane as shown in Fig. below the rod is fixed with a p

Post by answerhappygod »

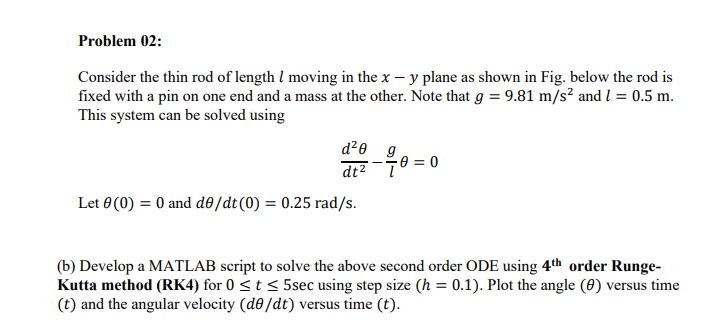

Problem 02 Consider The Thin Rod Of Length Moving In The X Y Plane As Shown In Fig Below The Rod Is Fixed With A P 1
Problem 02 Consider The Thin Rod Of Length Moving In The X Y Plane As Shown In Fig Below The Rod Is Fixed With A P 1 (57.7 KiB) Viewed 30 times
Problem 02: Consider the thin rod of length / moving in the x - y plane as shown in Fig. below the rod is fixed with a pin on one end and a mass at the other. Note that g = 9.81 m/s² and l = 0.5 m. This system can be solved using d²0 g dtz-70 = 0 Let 0 (0) = 0 and de/dt (0) = 0.25 rad/s. (b) Develop a MATLAB script to solve the above second order ODE using 4th order Runge- Kutta method (RK4) for 0 ≤ t ≤ 5sec using step size (h = 0.1). Plot the angle (0) versus time (t) and the angular velocity (de/dt) versus time (t).
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
