For this long shoe break system, we adopt the soft surface assumption with a constant pressure equal to 0.7 MPa and fric

[answerhappygod]

For This Long Shoe Break System We Adopt The Soft Surface Assumption With A Constant Pressure Equal To 0 7 Mpa And Fric 1 (152.89 KiB) Viewed 30 times

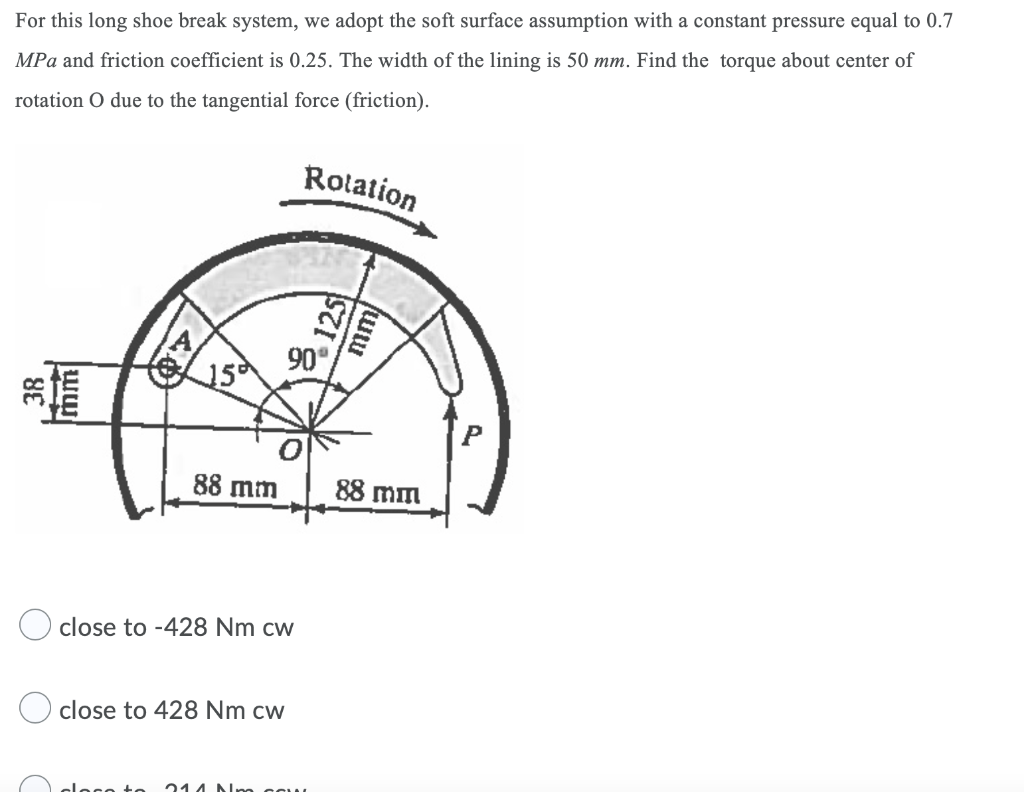

For this long shoe break system, we adopt the soft surface assumption with a constant pressure equal to 0.7 MPa and friction coefficient is 0.25. The width of the lining is 50 mm. Find the torque about center of rotation O due to the tangential force (friction). Rolation 15% 88 mm close to -428 Nm cw close to 428 Nm cw 311 N 38 mm 125 90° 88 mm
